AFL OPN-760XL Indoor/Outdoor 2-Panel Fiber Demarcation Box (13" x 13" x 3.75") | DM001000

$118.95
Reference#: 76871
Item#: AF-OPN-760XL



Description

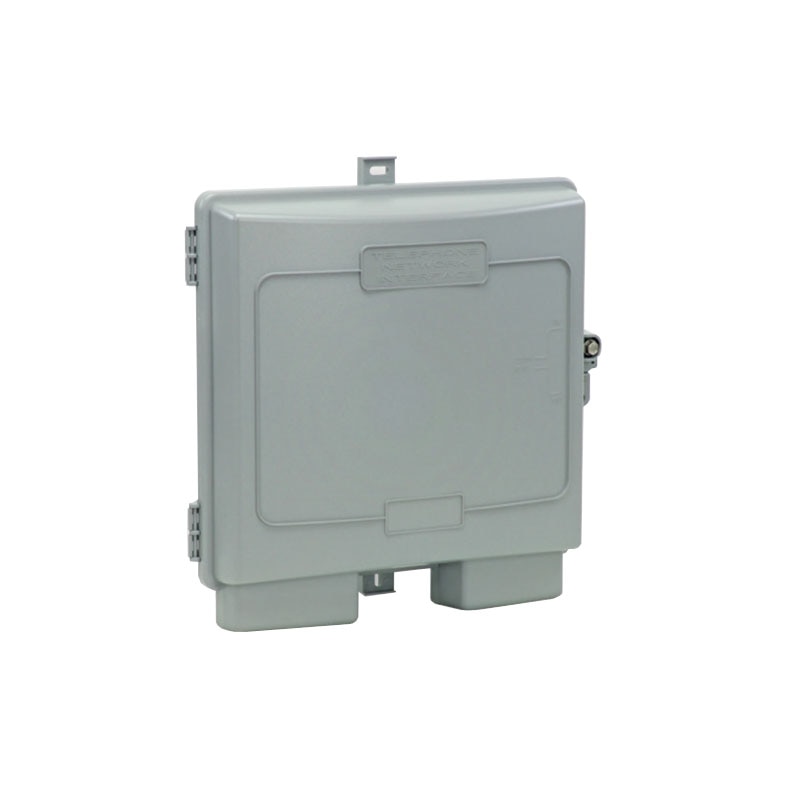

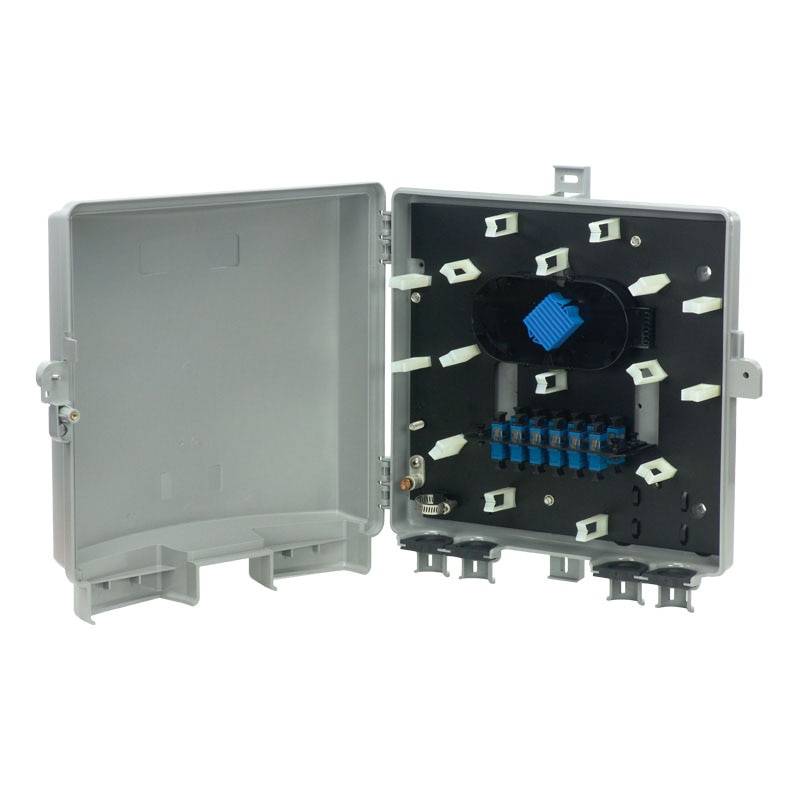

The AFL OptiNID OPN-760XL is an optical demarcation box designed for use in either indoor or outdoor environments. It is capable of housing up to 24 bulkhead adapters in two 118 LGX compatible adapter plates (not included) and is equipped with a splice tray (LL-2425), which holds up to 24 single fusion splices. Compatible fiber adapter plates can be found using the link at the bottom of this description. The OPN-760XL can be either wall or pole-mounted. The optional 3/4" Pipe Fitting Transition Kit can be purchase here: AFL DM001174 Pipe Fitting Transition Kit

AFL Model # OPN-760XL
AFL Part # DM001000

Need fiber bulkhead panels for this demarcation box? All LGX-style fiber panels sold on this link will fit inside this OPN-760XL demarc box: Compatible Fiber Bulkhead Panels (must use LGX-style).

Features

• Capacity for up to two 118 LGX compatible adapter plates
• Rugged weather-resistant thermoplastic alloy
• Self-latching, hinged cover design allows easy access without loose parts
• Slip-in grommets allow pre-connectorized cable deployment
• Provider override is provided so that technician can override customer lock

Specification

- Dielectric Strength: Minimum 2500 Vrms for 1 minute
- High Temperature Storage/Mold Stress °F (°C): 14 days at 159 (70.55)
- Temperature Cycling with Humidity °F (°C): 150 day cycling from 40-140 (4.44-60) with 95% RH
- Impact Test °F (°C): -40 (-40), 5*/lbs on all external surfaces
- Drop Test °F (°C): -40 (-40), 5* (12.7 cm) onto concrete surface 4 times
- Rain: 24 hours at 10 psi
- UV Resistance (Days Exposed): 60 per ASTM-G26-84
- Salt Fog (Days Exposed): 60 per ASTM-BLL7-90
- Flammability: UL94-5V
- Chemical Resistance, 30 Days at 100 °F and 95% RH Subject to: Resists chipping and/or cracking when subject to: house paint, wasp spray, sulfuric acid, kerosene and sodium hydroxide
- Material: UL® listed flame retardant thermoplastic alloy
- Dimensions (H x W x D) in. (cm): 13 x 13 x 3.75 (32.5 x 32.5 x 9.5)
- Cable Entrances in. (cm) diameter—Input: 4 x 0.875 (2.2)—3/4" conduit
- Covers: Standard – molded-in snap finger and 3/8" hex head fastener
