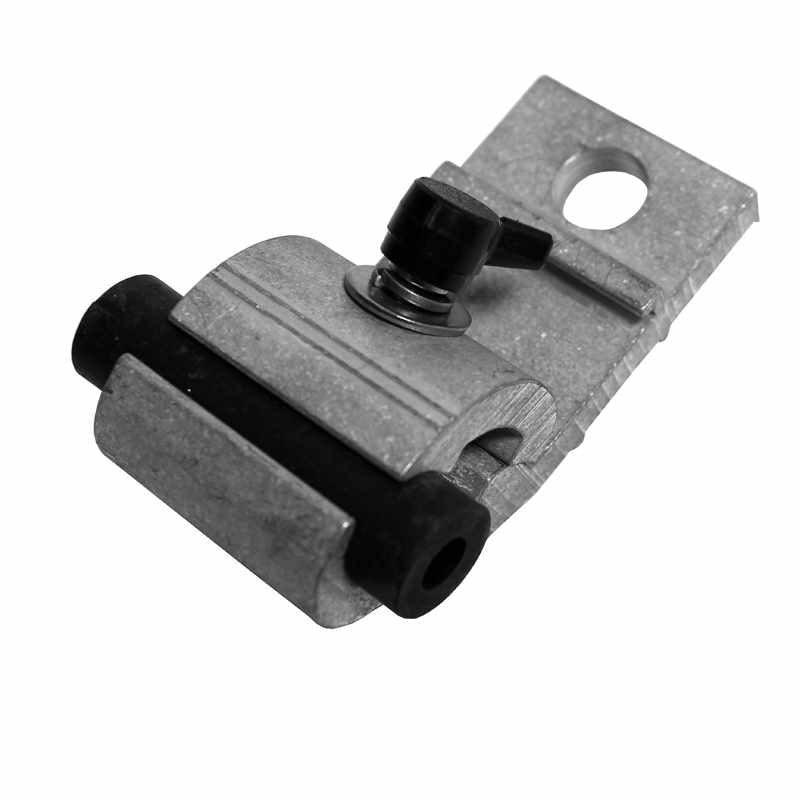

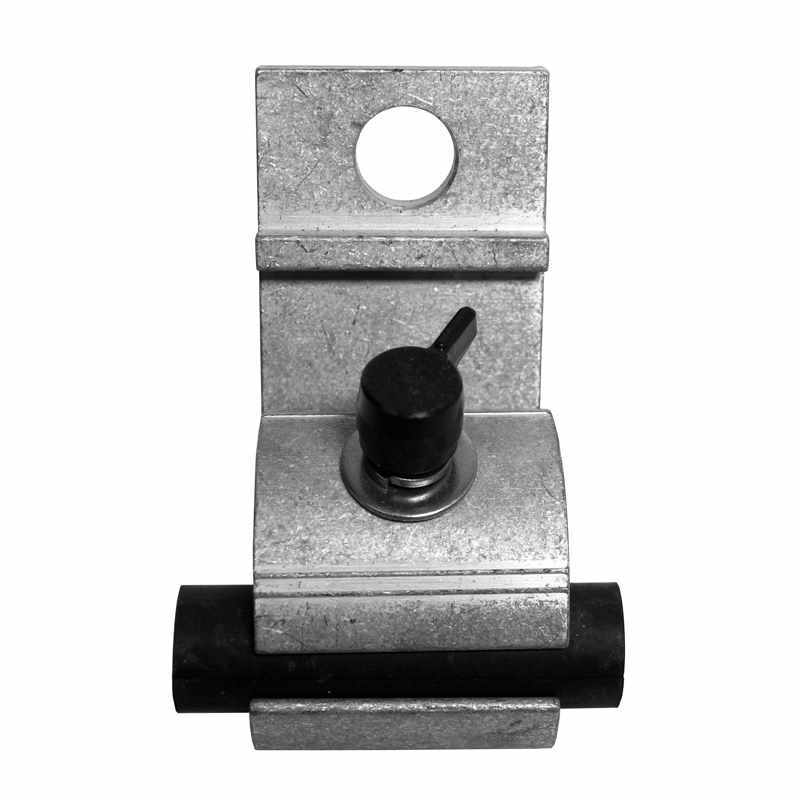

AFL AMBB424 Short/Medium Span 424 Mini Bracket for ADSS Fiber Cable

Reference#: 68139
Item#: AF-AMBB424


Mini Brackets are used for short and medium spans of ADSS fiber optic cable as well as Aerial Drop cables. Mini Brackets are sized to fit specific ADSS diameters. Standard Mini Brackets are employed with fitted bushings to provide a good support/groove fit and to prevent the support from damaging the cable. The bolted supports are supplied with aluminum captive bolts to simplify installation with no loose parts.


• Maximum one side angle: 8.5 degrees
• Maximum rated strength: 3,000 lbs.
• Hand tighten bolt to 25 in. lbs. (2.8 N-m)
• Slip load at 4 to 6% of RBS
• Mounting hole size (approx.): 11/16"
