Arlington TVB613 Recessed TV Box

Reference#: 68287
Item#: AR-TVB613


Arlington TVB613 Recessed TV Box

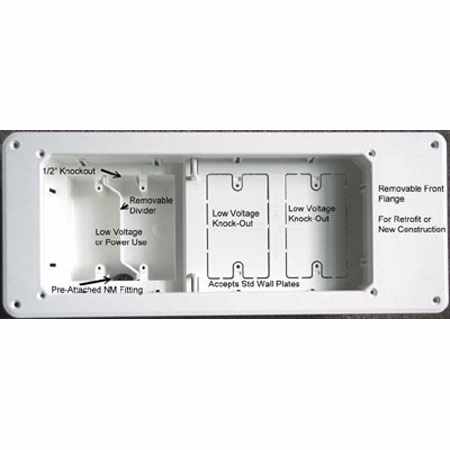

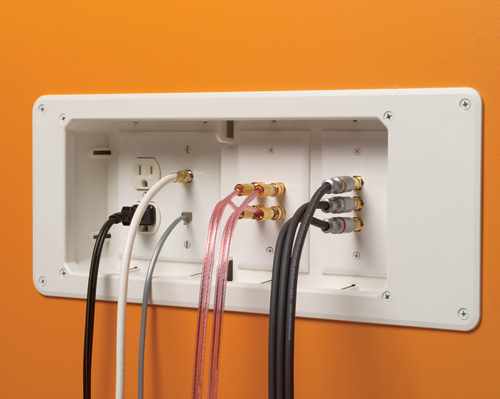

Arlington Industries TVB613 recessed TV box for mounting behind flat screen TVs. The Arlington TV box is used for new or old work and allows LCD/plasma TVs or furniture to go flush against the wall. Its double-gang design allows TWO duplex receptacles (or use the voltage separator for one duplex power and one low-voltage outlet). There are two additional built-in mounts for low-voltage use, such as speakers, satellite TV, surround-sound, or other media or datacomm connections. The 13" wide, non-metallic TV box mounts between 16" o.c. studs for a secure horizontal or vertical installation. Paintable trim plate to match any color wall.


• Perfect for flat screen plasma/LCD televisions

• For new or existing construction

• Recessed, so plugs do not protrude from wall

• Trim ring (TVB613) and cover (TVB613C) are textured/paintable

• (2) low voltage mounts are built-in

• Low voltage separator provided for built-in 2-gang device box so power and low voltage can be combined

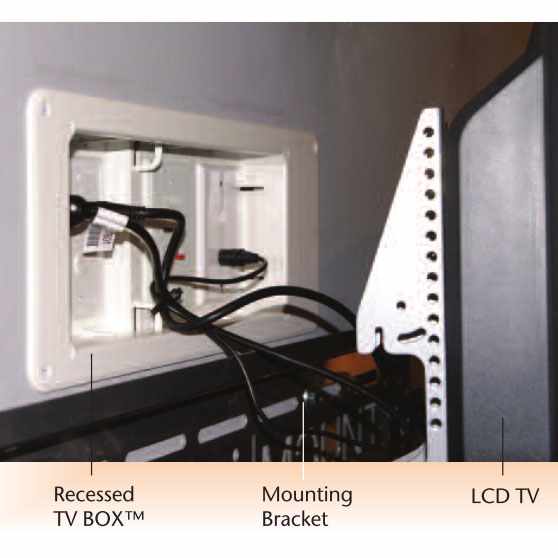

• The box is recessed, so plugs don’t extend past the wall. You can mount TVs flush or push furniture closer to the wall

• Textured, paintable trim plate covers edges of cut drywall

• Positioning tabs for 1/2" wall thickness assure accurate placement of box on stud • Horizontal or vertical mounting

• UL Listed – CSA Listed with grounding lug

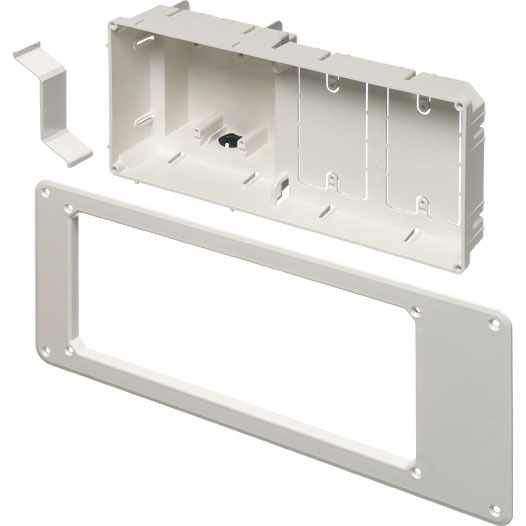

TVB613 Package Includes:

Recessed TV Box w/ trim plate
Low voltage separator
NM cable connector
Installation screws
