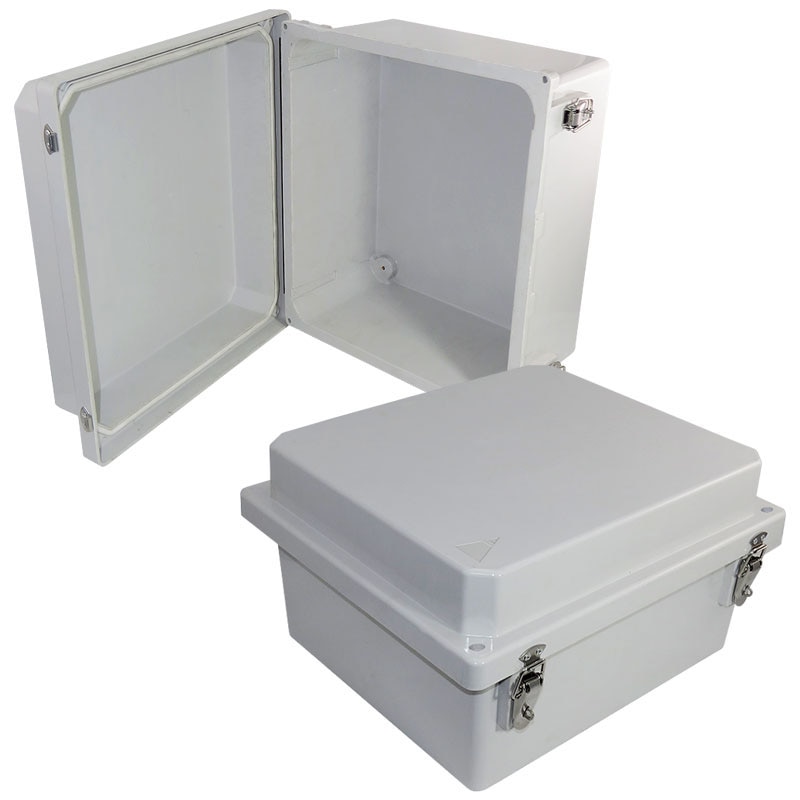

Altelix NF141208 Fiberglass Weatherproof NEMA 4X Enclosure with Quick Release Latches - 14"x12"x8"

$144.95
Reference#: 76984
Item#: NF141208



Description

The Altelix NF141208 NEMA 4X Weatherproof Enclosure is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Mounting Four removable stainless steel mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-300-08) and stainless steel (model NMKX-300-08).

Applications

  • Indoor & Outdoor WiFi Equipment
  • RFID Readers
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage
  • Concealment of Electronic Equipment
  • Industrial Automation

Features

  • Water Resistant JIC Enclosure Design with Gasketed Lid
  • Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
  • Corrosion Resistant, Dent Proof and UV Stable
  • Non-Conductive and RF Transparent
  • Raised Bosses and Brass Inserts for Plate Mounting
  • Heavy Duty Compression Molded Fiberglass Reinforced Polyester (FRP) Construction
  • Stainless Steel Quick Release Latches with Padlock Hasps
  • Stainless Steel Continuous Door Hinge
  • (4) Stainless Steel Mounting Feet Included
  • Easily Modified with Conventional Tools
  • Optional Pole Mounting / Flange Mounting Kits Available
  • Specification

  • Material: Fiberglass Reinforced Polyester
  • Color: Gray
  • Outer Dimensions: 15.75 x 13.83 x 8.73 Inches, (401 x 352 x 222 mm)
  • Inner Dimensions: 13.87 x 11.97 x 8.4 Inches, (352 x 304 x 213 mm)
  • Weight: 9.15 lbs. (4.2 kg)
  • Ratings: NEMA Type 4, 4X / IP66
  • Flame Rating: UL94-5V
