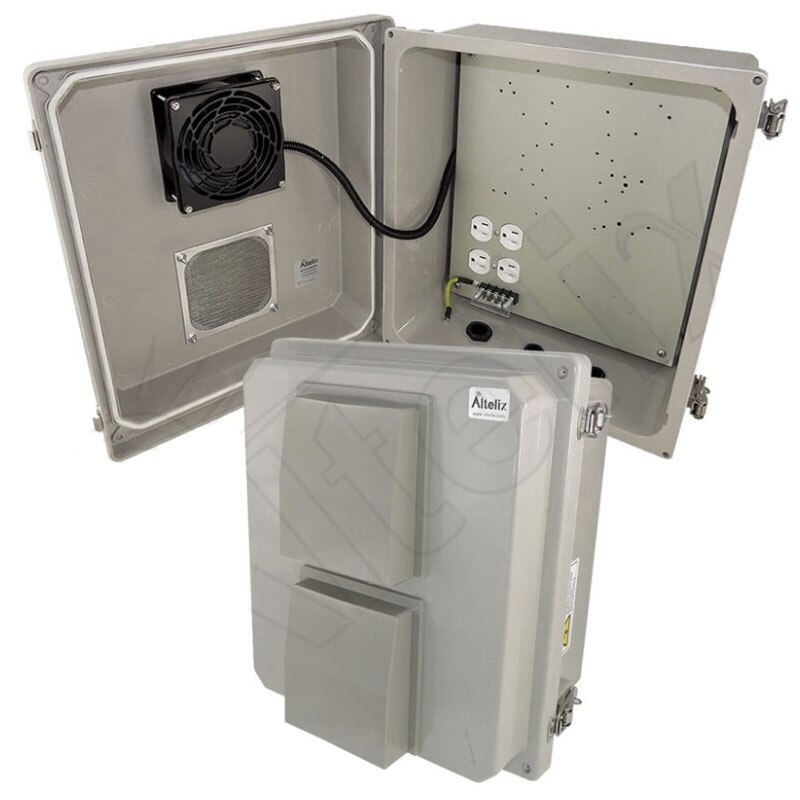

Altelix NF141208VFHA1 Fiberglass Vented & Heated Weatherproof NEMA Enclosure w/ Cooling Fan 200W Heater 120 VAC Outlets - 14"x12"x8"

The Altelix NF141208VFHA1 Heated and Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This rugged NEMA box is molded from durable and UV resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. It features a gasketed door with stainless steel continuous hinge and stainless steel latches with provision for padlocks. It is suitable for use indoors or outdoors.

This JIC style enclosure is dent-proof, corrosion resistant and UV stable. The FRP material is non-conductive and RF transparent. It is suitable for use in the harshest outdoor environments. It can be drilled and modified by the installer to suit unique site requirements.

Power
This model features an aluminum equipment mounting plate with four pre-wired 120VAC power outlets. A terminal strip and ground lug are provided for simplified wiring on-site.

Aluminum Equipment Plate
The enclosure and plate can be drilled and modified by the installer to suit unique site requirements. In addition the mounting plate features a number of pre-drilled hole patterns for mounting popular wireless access points without any modifications. These include various models of Cisco® Aironet® , MikroTik, Ubiquiti® Rocket®, Mimosa, Aerohive® and more.

Heater
This model also features a thermostat controlled 200W heating system. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is situated below the mounting plate and wired internally so it does not interfere with user installed equipment or require the use of the AC outlets.

Cooling Fan Ventilation
This unit features dual 4" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets leaving them available for equipment use. Rain shrouds on the front door keep rain water from entering the enclosure, and the screens are removable for cleaning. A dual fans option is also available.

Mounting
Four removable stainless steel mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-300-08) and stainless steel (model NMKX-300-08).

Applications

• Outdoor WiFi Installations
• SCADA Remote Terminal Unit
• Security & Video Surveillance Systems
• Protection of Equipment from Theft or Damage
• Concealment of Equipment
• Building Maintenance Areas
• Building Rooftop or Basement
• Parking Lots and Garages
• Warehouses & Loading Docks
• Weather Stations
