Altelix Enclosure for SONOS® AMP, Apple® TV, Amazon® Echo Link Amp, Control4® EA-3, Crestron® MC3 - Gray

$379.95
Reference#: 77071
Item#: NP17AVGY



Description

The Altelix NP17AV Enclosure is a weatherproof fan-cooled enclosure designed to provide indoor or outdoor protection for a wide range of Audio/Video and Network devices including:

  • SONOS® AMP (newest version)
  • SONOS® Connect:Amp™
  • Apple TV®
  • Apple Mac mini®
  • Amazon Echo® Link Amp
  • Control4® EA-3 Controller (C4-EA3 and C4-EA3-V2)
  • Crestron® MC3 3-Series Control System®

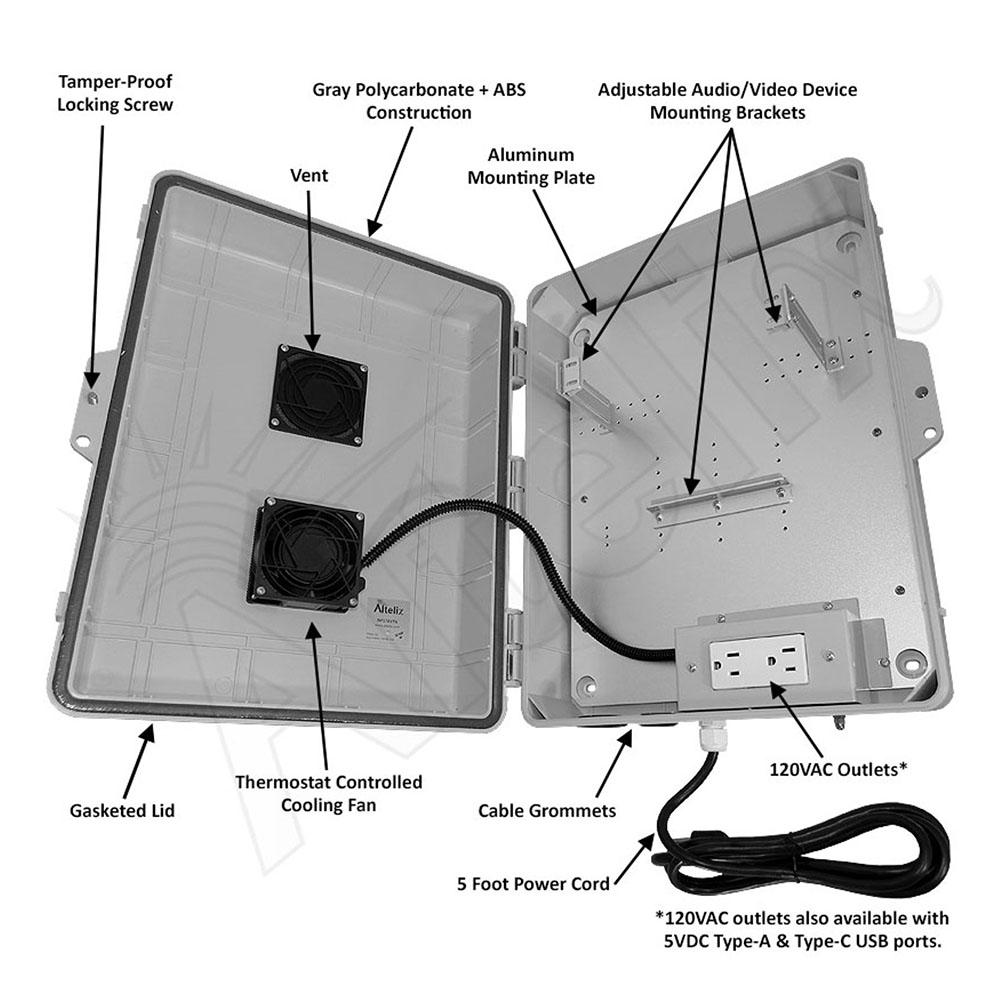

    Install Your A/V Equipment Securely Outdoors This sleek Gray colored enclosure is molded from weatherproof UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS, for extreme durability. The door features reinforced hinges, dual latches and a tamper-proof locking screw with key to secure the enclosure. The wall mounting screws are concealed securely within the enclosure to prevent tampering. There is also a provision for a padlock.

    Universal Mounting System The NP17AVGY features a versatile adjustable mounting system that allows a wide range of devices to be installed inside the enclosure.

    Plug and Play Setup The NP17AVGY enclosure provides easy plug-n-play installation. Once your equipment is securely mounted inside the enclosure, connect its power cord to the internal 120VAC power outlet. A cable grommet on the enclosure allows cables to be connected to the device. Simply plug the enclosure's 5 foot power cord into an outdoor outlet and you are up and running.

    Cooling Fan Ventilation The NP17AVGY enclosure features dual 3" vents and a thermostat controlled cooling fan. The low noise, high airflow fan helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). The fan is wired internally so it does not require the use of the AC outlets. Rain shrouds on the front door keep rain water from entering the enclosure.

    Mounting The NP17AVGY enclosure can be wall mounted using the included wall anchors. An optional pole mount kit (NMK-0001) is also available for mounting on poles or fence posts.

    Applications

  • Outdoor or indoor use of Audio/Video & Network Devices
  • Pool side, backyard audio/video entertainment systems
  • Outdoor hotel and hospitality audio/video entertainment systems
  • Marine audio entertainment systems
  • Protection of Equipment from Theft or Damage

Features

  • Dual 3" Vents and Thermostat Controlled Cooling Fan
  • PC+ABS Polycarbonate / ABS Blend
  • Gasketed Lid with Tamper-Proof Locking Screw
  • Dual Door Latches
  • Includes Rugged Aluminum Equipment Mounting Plate and Adjustable Brackets
  • Internal 120VAC Outlets
  • Pre-wired 5 foot power cord
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Wall Mount Hardware and Cable Grommets

    • Specification

  • Material: PC+ABS Polycarbonate / ABS Blend
  • Color: Gray
  • Voltage: 120VAC
  • Cooling Fan Turn-On Temperature: 100°F (38°C)
  • Cooling Fan Turn-Off Temperature: 79°F (26°C)
  • Outer Dimensions: 16.5 x 12.5 x 5.3 Inches, (420 x 320 x 133 mm)
  • Mounting Plate Material: 0.08 in (2.0 mm) Aluminum
  • Weight: 6.8 lbs. (3.0 kg)
  • Power Cord Length: 5 Feet (1.5m)
  • Ratings: NEMA Type 3R, 3RX / IP24
  • Flame Rating: Meets UL94-V0
  • Knockout Sizes (Diameter): (4) 0.62 in. (16 mm), (4) 1.02 in. (26 mm), (4) 1.30 in. (33 mm)
