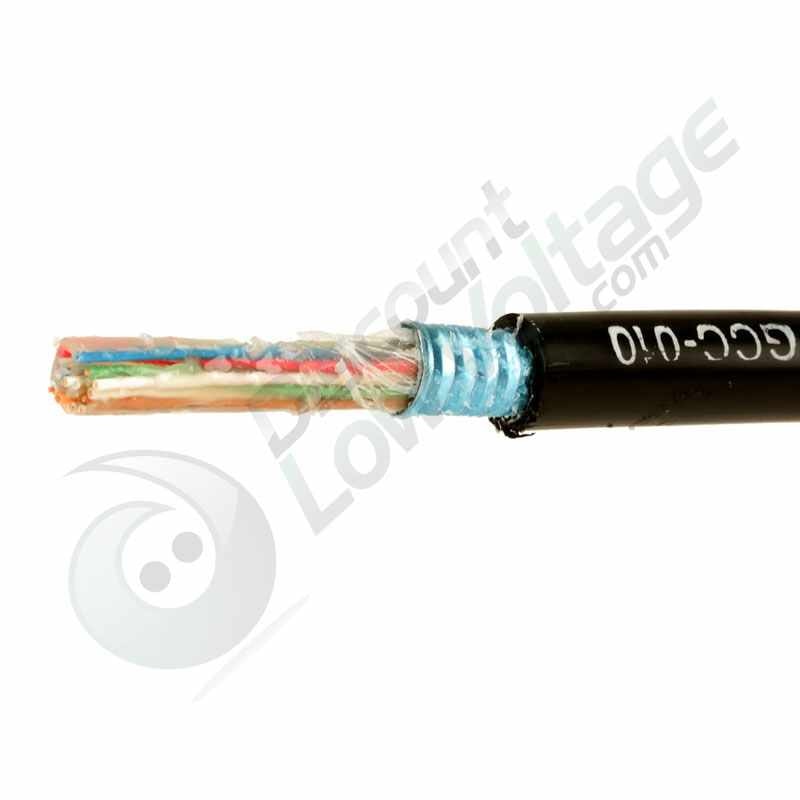

6 Pair 19AWG Telephone Cable - PE89 Direct Burial (per foot) *50ft minimum

$1.78
Reference#: 68306
Item#: BC1891219BKGN



Description

6 pair copper Cat 3 outside plant 19 awg voice cable is generally installed as aerial telephone cable between poles, in an underground conduit system, or by direct underground burial. Hardware associated with the outside plant must be either protected from the elements (for example, distribution frames are generally protected by a street side cabinet) or constructed with materials suitable for exposure to the elements.

Note: Minimum Order Quantity - 50ft
To order, add ANY length above 50ft in "Add to Cart" box.

PE89 Foam skin insulated filled telephone cable: PE89 Filled ALPETH Cable with foam skin insulation is a single jacket, filled design. Intended for direct burial underground applications. An ETPR compound completely coats each insulated conductor and fills the air space between conductors. The shielding and jacket combined with the filling and flooding compounds throughout the PE-89 cable provide exceptional durability and resistance to moisture.

PE89 gel filled telephone cable is suitable for outdoor applications without the use of conduit. The cable is filled with water resistant jell and UV resistant. The conductors are 19awg and follow the industry standard color code for twisted pair cables. Direct burial telephone cable must not be run for more than 50ft inside buildings (per the National Electrical Code).

Specification

Core Construction: Solid, annealed copper; size 19 AWG

Insulation: Dual insulation consisting of an inner layer of foamed polyethylene surrounded by a solid polyethylene skin, color-coded in accordance with telephone industry standards

Twisted Pairs: Insulated conductors are twisted into pairs with varying lay lengths to minimize crosstalk

Core Assembly: 25 pairs and less: pairs are assembled together in a single group More than 25 pairs: pairs are arranged in groups, each group having a color coded unit binder.

Core Wrap: Non-hygroscopic dielectric tape applied longitudinally with an overlap

Aluminum Shield: Corrugated, co-polymer coated, 0.008" aluminum tape applied longitudinally with an overlap The sheath interfaces are flooded with an adhesive water-blocking compound

Jacket: Black, linear low density polyethylene Application(s):

Compliance: Rural Development Utility Program(RDUP) 7 CFR 1755.890 (RUS PE-89)

Note: Minimum Order Quantity - 50ft
To order, add ANY length above 50ft in "Add to Cart" box.
