Belden 14 awg 2 conductors stranded bare copper gray CL3R 75C 1000ft box

$860.00
Reference#: 68460
Item#: BE-5100UE



Description

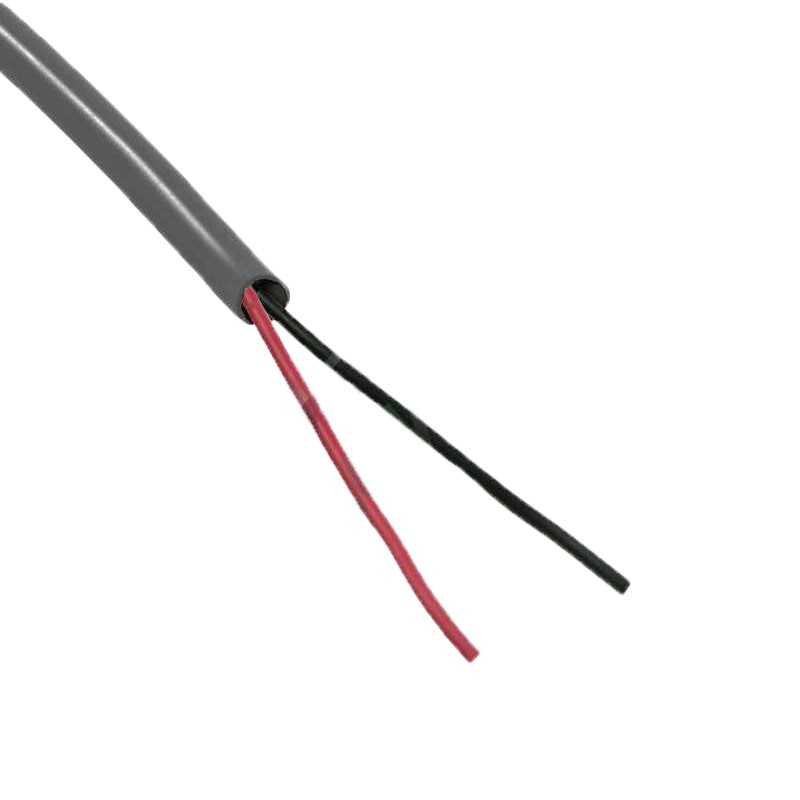

14 AWG bare copper conductors, PP insulation, PVC jacket with ripcord, sequential footage marking every two feet.

Specification

CONDUCTOR: Gauge (AWG)
  • 14 AWG (AMERICAN WIRE GAUGE)
CONDUCTOR: Count
  • 2 CONDUCTORS
Cond. Type
  • STRANDED CONDUCTOR
Material
  • BARE COPPER
Plenum:
  • NO IS NOT A PLENUM CABLE
Insulation Material:
  • PP-POLYPROPYLENE
SCREEN/SHIELD:
  • NO SHIELDS USED
JACKETING: Material
  • PVC-POLYVINYL CHLORIDE
Color Code
  • GRAY (SLATE)
SPEC NBR: UL Style
  • UL LSTED WIRE MISC.
NEC Rating
  • UL LISTED ART 725 CL3 RISER/760 RISER - FIRE ALARM
CSA
  • FLAME RATED FOR GENERAL USE
Temperature Rating:
  • 75 DEGREES CENTIGRADE
Voltage Rating:
  • 300 VOLTS AC
RoHS Compliant:
  • YES
Unspsc Code
  • 26121613
