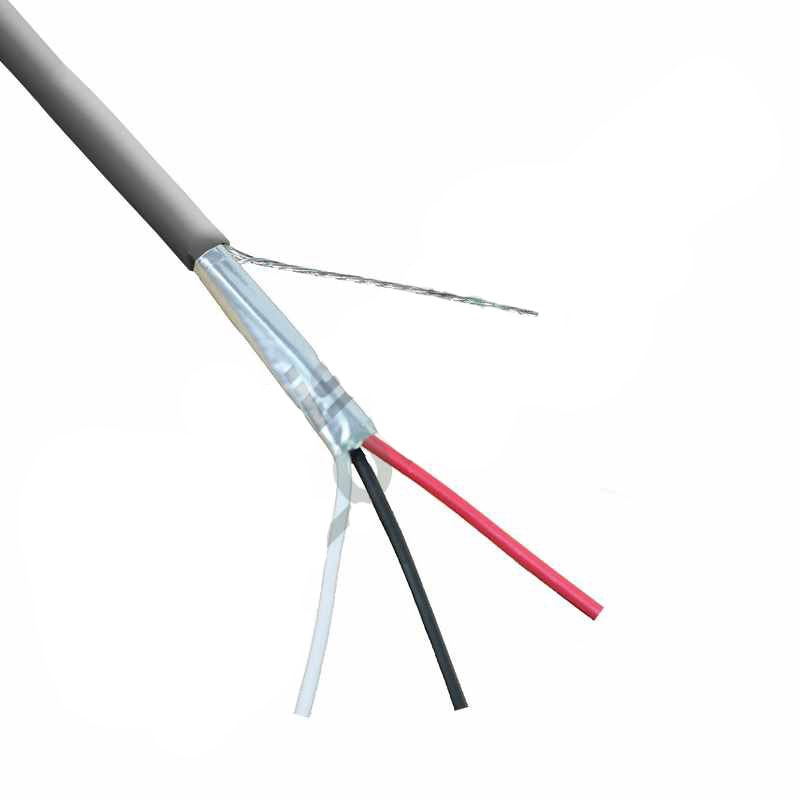

Belden 18 awg 3 conductors stranded bare copper shielded gray CMR 75C 1000ft box

$564.00
Reference#: 68481
Item#: BE-5301FE



Description

18 AWG bare copper conductors, PP insulation, conductors cabled, Beldfoil® shield tape (foil side out) with drain wire, PVC jacket with ripcord, sequential footage marking every two feet.

Specification

CONDUCTOR: Gauge (AWG)
  • 18 AWG (AMERICAN WIRE GAUGE)
CONDUCTOR: Count
  • 3 CONDUCTORS
Cond. Type
  • STRANDED CONDUCTOR
Material
  • BARE COPPER
Plenum:
  • NO IS NOT A PLENUM CABLE
Insulation Material:
  • PP-POLYPROPYLENE
SCREEN/SHIELD:
  • YES CABLE HAS SHIELDING
Shield Type
  • FOIL SHIELDED - ALUM/MYLAR
Construction
  • OVERALL SHIELD & DRAIN
JACKETING: Material
  • PVC-POLYVINYL CHLORIDE
Color Code
  • GRAY (SLATE)
SPEC NBR: UL Style
  • UL LSTED WIRE MISC.
NEC Rating
  • UL LISTED ART 800 RISER
CSA
  • FLAME RATED FOR GENERAL USE
Temperature Rating:
  • 75 DEGREES CENTIGRADE
Voltage Rating:
  • 300 VOLTS AC
RoHS Compliant:
  • YES
Unspsc Code
  • 26121613
