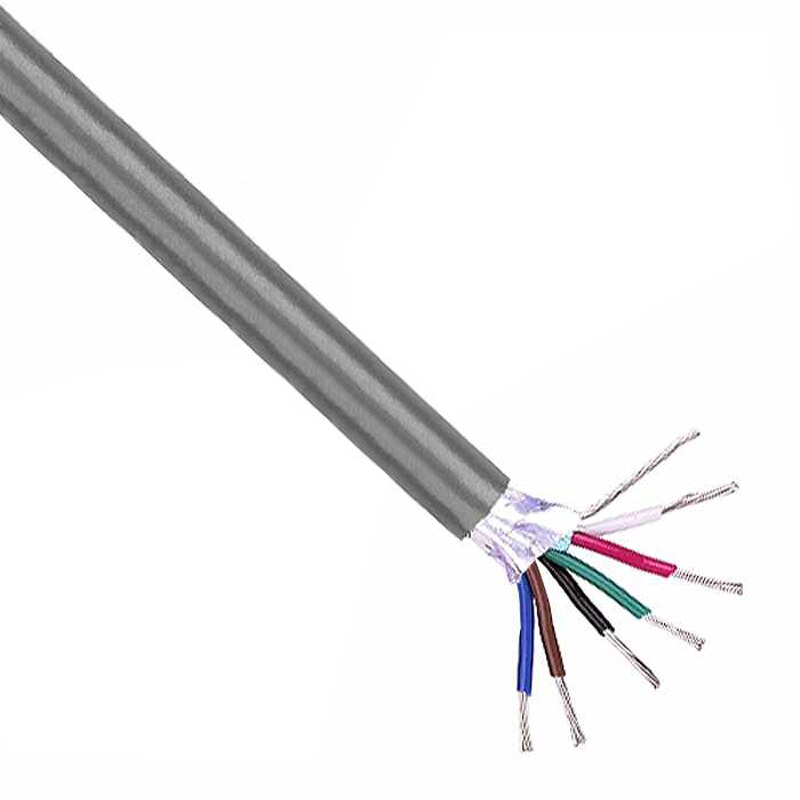

Belden 18 awg 6 conductors stranded bare copper shielded gray CMR 75C 1000ft box

$754.00
Reference#: 68487
Item#: BE-5304FE



Description

18 AWG bare copper conductors, PP insulation, cabled, Beldfoil® shield tape (foil side out) with drain wire, PVC jacket. Sequential footage marking every two feet.

Specification

CONDUCTOR: Gauge (AWG)
18 AWG (AMERICAN WIRE GAUGE)
CONDUCTOR: Count 6
CONDUCTORS Cond. Type STRANDED
CONDUCTOR Material BARE COPPER
Plenum: NO IS NOT A PLENUM CABLE
Insulation Material: PP-POLYPROPYLENE
SCREEN/SHIELD: YES CABLE HAS SHIELDING
Shield Type FOIL SHIELDED - ALUM/MYLAR Construction OVERALL SHIELD & DRAIN
JACKETING: Material PVC-POLYVINYL CHLORIDE
Color Code GRAY (SLATE)
SPEC NBR: UL Style UL LISTED WIRE MISC.
NEC Rating UL LISTED ART 800
RISER CSA FLAME RATED FOR GENERAL USE Temperature Rating: 75 DEGREES
Voltage Rating: 300 VOLTS AC
RoHS Compliant: YES
Unspsc Code 26121613
