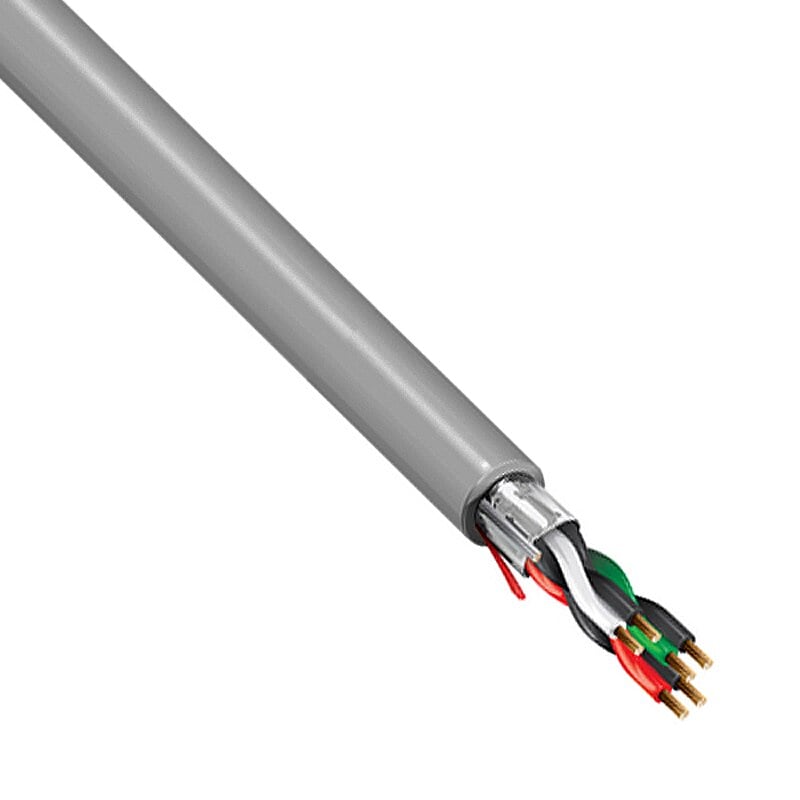

Belden 18 AWG 3 pair stranded shielded gray CMR 75C 1000 ft REEL

$662.00
Reference#: 68502
Item#: BE-5342FE



Description

18 AWG bare copper conductors, PVC insulation, conductors twisted into pairs, multiple pairs cabled together, overall Beldfoil® shield (foil side out) and drain wire, overall PVC jacket with rip cord. Sequential footage marking every two feet.

Specification

ONDUCTOR: Gauge (AWG)
  • 18 AWG (AMERICAN WIRE GAUGE)
CONDUCTOR: Count
  • 3 PAIRS
Cond. Type
  • STRANDED CONDUCTOR
Material
  • BARE COPPER
Plenum:
  • NO IS NOT A PLENUM CABLE
Insulation Material:
  • PVC-POLYVINYL CHLORIDE
SCREEN/SHIELD:
  • YES CABLE HAS SHIELDING
Shield Type
  • FOIL SHIELDED - ALUM/MYLAR
Construction
  • OVERALL SHIELD & DRAIN
JACKETING: Material
  • PVC-POLYVINYL CHLORIDE
Color Code
  • GRAY (SLATE)
SPEC NBR: UL Style
  • UL LSTED WIRE MISC.
NEC Rating
  • UL LISTED ART 800 RISER
CSA
  • FLAME RATED FOR GENERAL USE
Temperature Rating:
  • 75 DEGREES CENTIGRADE
Voltage Rating:
  • 300 VOLTS AC
RoHS Compliant:
  • YES
Conductor Size AWG
  • 18
Conductor Strand
  • 7x26
No. of Pairs
  • 3
Insulation Thickness (in.)
  • 0.010
Jacket Thickness (in.)
  • 0.015
Approx. Wt. lb./1,000 ft.
  • 48
Nom. O.D. (in.)
  • 0.275
Unspsc Code
  • 26121613
