Belden 20 awg 2 conductors stranded bare copper gray CMR 75C 1000ft box

$247.00
Reference#: 68506
Item#: BE-5400UE



Description

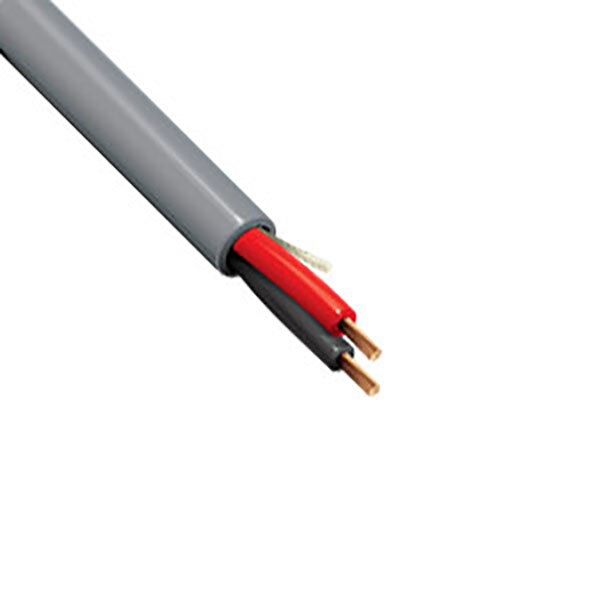

Security & Commercial Audio Cable, Riser-CMR, 2-20 AWG stranded bare copper conductors with polyolefin insulation, PVC jacket with ripcord

Specification

CONDUCTOR: Gauge (AWG)
  • 20 AWG (AMERICAN WIRE GAUGE)
CONDUCTOR: Count
  • 2 CONDUCTORS
Cond. Type
  • STRANDED CONDUCTOR
Material
  • BARE COPPER
Plenum:
  • NO IS NOT A PLENUM CABLE
Insulation Material:
  • PP-POLYPROPYLENE
SCREEN/SHIELD:
  • NO SHIELDS USED
JACKETING: Material
  • PVC-POLYVINYL CHLORIDE
Color Code
  • GRAY (SLATE)
SPEC NBR: UL Style
  • UL LSTED WIRE MISC.
NEC Rating
  • UL LISTED ART 800 RISER
CSA
  • FLAME RATED FOR GENERAL USE
Temperature Rating:
  • 75 DEGREES CENTIGRADE
Voltage Rating:
  • 300 VOLTS AC
RoHS Compliant:
  • YES
AWG
  • 20
Conductor Size AWG
  • 20
Conductor Strand
  • 7x28
Jacket
  • PVC
No. of Conductors
  • 2
UL Designation
  • CMR
Insulation Thickness (in.)
  • 0.007
Jacket Thickness (in.)
  • 0.017
Stranding:
  • 7x28
Copper
  • BC
Approx. Wt. lb./1,000 ft.
  • 13
Nom. O.D. (in.)
  • 0.134
Unspsc Code
  • 26121613
