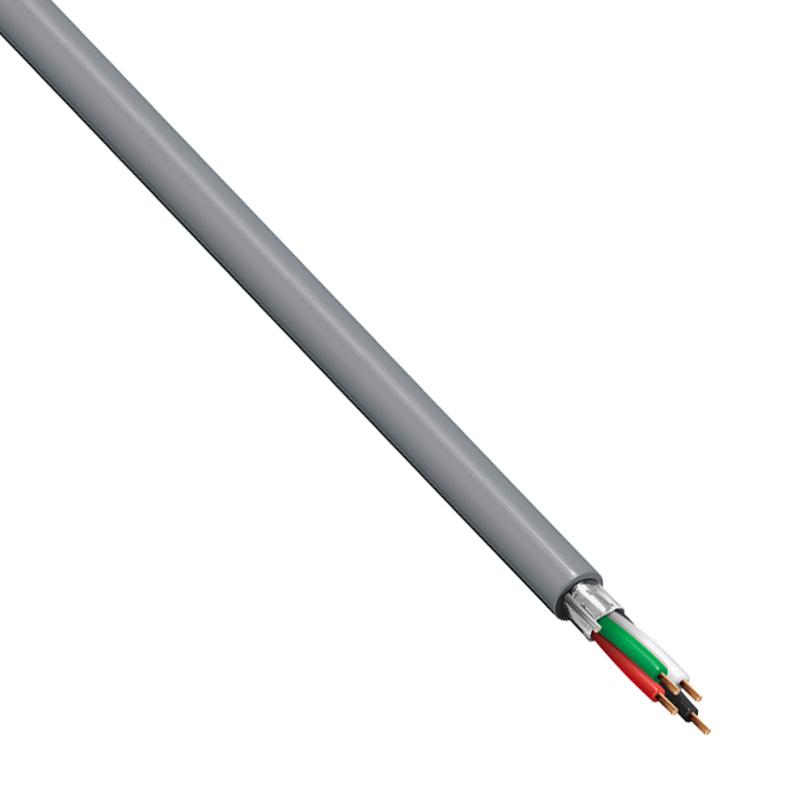

Belden 20 AWG, 4 Conductors, Stranded Bare Copper, Shielded Gray CMR 300V 75C (1,000ft)

Belden 5402FE Security and Sound Cable; 20 AWG; Stranded; 4 Conductor; Bare Copper; 1000 ft. Length; 7x28 Str; Gray PVC with Ripcord Jacket; Polypropylene Insulation; Riser, CMR; 300 V; Black, Red, White, Green; Tape; Bi-Laminate Shield

CONDUCTOR: Gauge (AWG)

• 20 AWG (AMERICAN WIRE GAUGE)

CONDUCTOR: Count

• 4 CONDUCTORS

Cond. Type

• STRANDED CONDUCTOR

Material

• BARE COPPER

Plenum:

• NO IS NOT A PLENUM CABLE

Insulation Material:

• PP-POLYPROPYLENE

SCREEN/SHIELD:

• YES CABLE HAS SHIELDING

Shield Type F

• OIL SHIELDED - ALUM/MYLAR

Construction

• OVERALL SHIELD & DRAIN

JACKETING: Material

• PVC-POLYVINYL CHLORIDE

Color Code

• GRAY (SLATE)

SPEC NBR: UL Style

• UL LSTED WIRE MISC.

NEC Rating

• UL LISTED ART 800 RISER

CSA

• FLAME RATED FOR GENERAL USE

Temperature Rating:

• 75 DEGREES CENTIGRADE

Voltage Rating:

• 300 VOLTS AC

RoHS Compliant:

• YES
