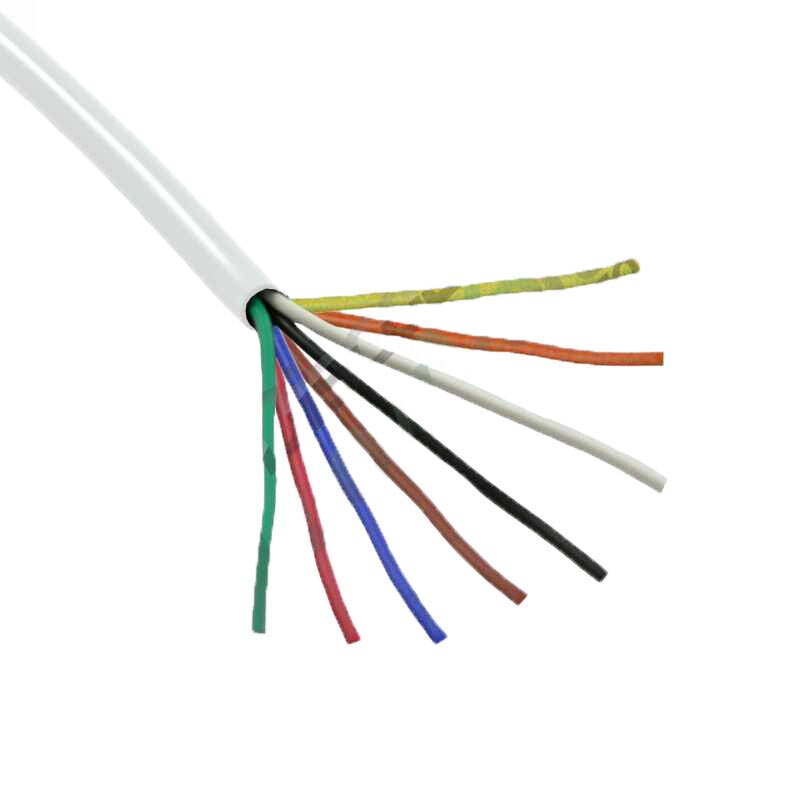

Belden 18 awg 8 conductors stranded bare copper white CMP 75C 1000ft box

$728.00
Reference#: 68545
Item#: BE-6306UE



Description

18 AWG bare copper conductors, Flamarrest® insulation, conductors cabled, Flamarrest® jacket, ripcord. Sequential footage marking every two feet.

Specification

CONDUCTOR: Gauge (AWG)
  • 18 AWG (AMERICAN WIRE GAUGE)
CONDUCTOR: Count
  • 8 CONDUCTORS
Cond. Type
  • STRANDED CONDUCTOR
Material
  • BARE COPPER
Plenum:
  • YES IS A PLENUM CABLE
Insulation Material:
  • FRPVC-FLAME RETARDANT PVC
SCREEN/SHIELD:
  • NO SHIELDS USED
JACKETING: Material
  • LSPVC-LOW SMOKE POLYVINYL CHLORIDE
Color Code
  • NATURAL
SPEC NBR: UL Style
  • UL LSTED WIRE MISC.
NEC Rating
  • UL LISTED ART 800 PLENUM
CSA
  • FLAME RATED
Temperature Rating:
  • 75 DEGREES CENTIGRADE
Voltage Rating:
  • 300 VOLTS AC
RoHS Compliant:
  • YES
Unspsc Code
  • 26121613
