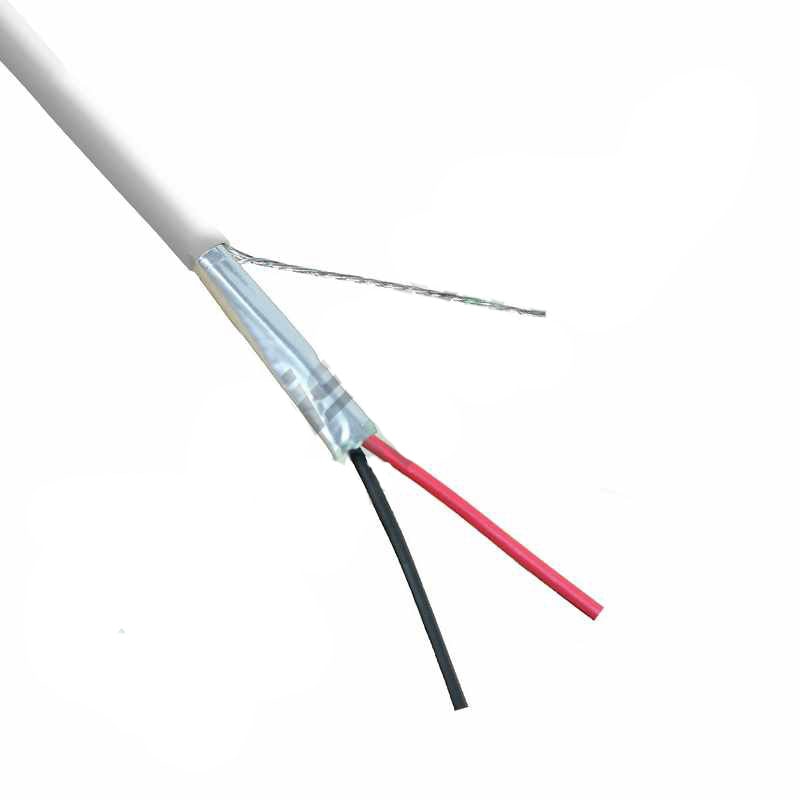

Belden 22 awg 2 conductors solid bare copper shielded white CMP 75C 1000ft box

$269.00
Reference#: 68573
Item#: BE-6520FE



Description

22 AWG bare copper conductors, Flamarrest® insulation, conductors cabled, Overall Beldfoil® tape shield (foil side out) and drain wire, Flamarrest® jacket with ripcord, sequential footage marking every two feet.

Specification

CONDUCTOR: Gauge (AWG)
  • 22 AWG (AMERICAN WIRE GAUGE)
CONDUCTOR: Count
  • 2 CONDUCTORS
Cond. Type
  • SOLID CONDUCTOR
Material
  • BARE COPPER
Plenum:
  • YES IS A PLENUM CABLE
Insulation Material:
  • LSPVC-LOW SMOKE POLYVINYL CHLORIDE
SCREEN/SHIELD:
  • YES CABLE HAS SHIELDING
Shield Type
  • FOIL SHIELDED - ALUM/MYLAR
Construction
  • OVERALL SHIELD & DRAIN
JACKETING: Material
  • LSPVC-LOW SMOKE POLYVINYL CHLORIDE
Color Code
  • WHITE
SPEC NBR: UL Style
  • UL LSTED WIRE MISC.
NEC Rating
  • UL LISTED ART 800 PLENUM
CSA
  • FLAME RATED
Temperature Rating:
  • 75 DEGREES CENTIGRADE
Voltage Rating:
  • 300 VOLTS AC
RoHS Compliant:
  • YES
Unspsc Code
  • 26121613
