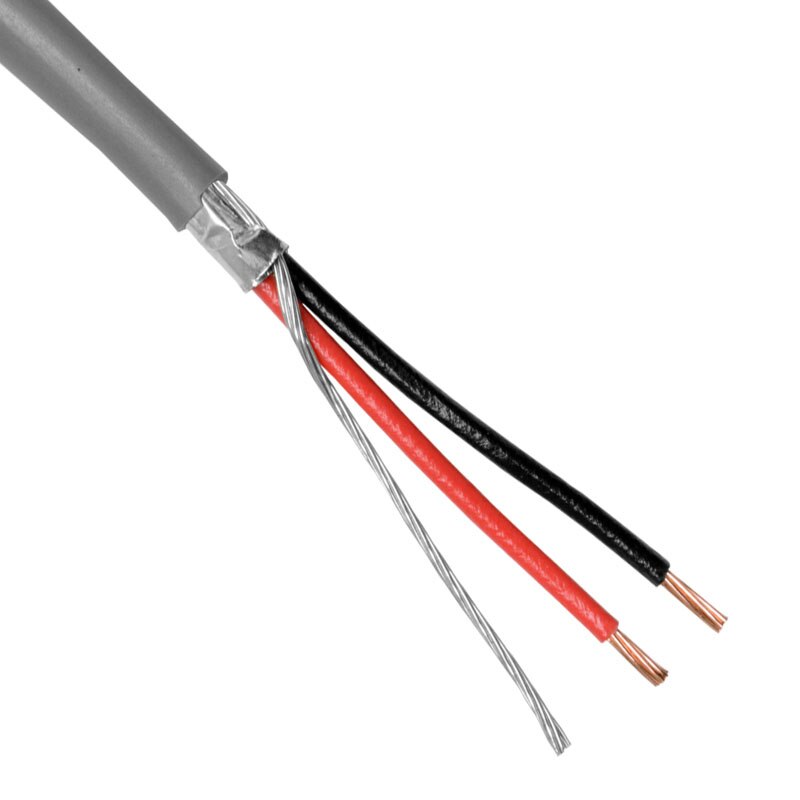

Belden 18 awg 2 conductors stranded bare copper shielded gray CMR 75C (500 ft)

$245.00
Reference#: 68478
Item#: BE-5300FE-500



Description

18 AWG bare copper conductors, PP insulation, conductors cabled, Beldfoil® shield tape (foil side out) with drain wire, PVC jacket with ripcord, sequential footage marking every two feet. 500 ft length.

* Notice: The video below shows an alternative 1,000 ft length. If you would like to order 1,000 ft of this cable, click here: 1,000 ft Belden 5300FE

Specification

CONDUCTOR: Gauge (AWG)

  • 18 AWG (AMERICAN WIRE GAUGE)

CONDUCTOR: Count

  • 2 CONDUCTORS

Cond. Type

  • STRANDED CONDUCTOR

Material

  • BARE COPPER

Plenum:

  • NO IS NOT A PLENUM CABLE

Insulation Material:

  • PP-POLYPROPYLENE

SCREEN/SHIELD:

  • YES CABLE HAS SHIELDING

Shield Type

  • FOIL SHIELDED - ALUM/MYLAR

Construction

  • OVERALL SHIELD & DRAIN

JACKETING: Material

  • PVC-POLYVINYL CHLORIDE

Color Code

  • GRAY (SLATE)

SPEC NBR: UL Style

  • UL LSTED WIRE MISC.

NEC Rating

  • UL LISTED ART 800 RISER

CSA

  • FLAME RATED FOR GENERAL USE

Temperature Rating:

  • 75 DEGREES CENTIGRADE

Voltage Rating:

  • 300 VOLTS AC

RoHS Compliant:

  • YES
