Bud Industries SNB-3741-SS Stainless Steel Weatherproof Metal NEMA Enclosure - 10" x 8" x 4"

$175.95
Reference#: 77066
Item#: SNB-3741-SS



Description

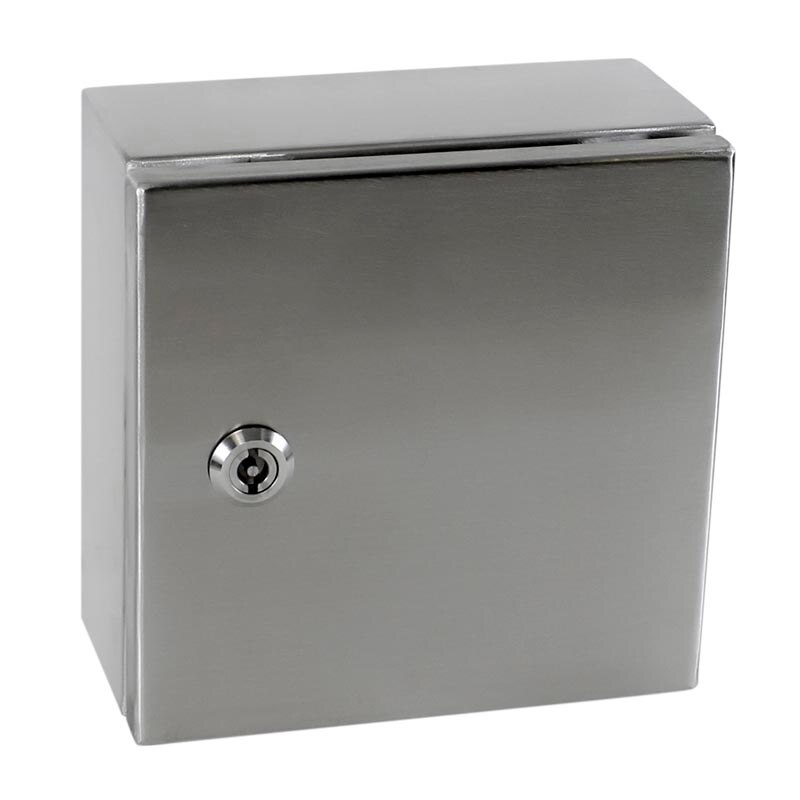

The Bud Industries SNB-3741-SS Stainless Steel NEMA enclosure maximizes protection of sensitive electronics and critical electrical controls (exact size is 9.84" x 7.87" x 3.98"). Constructed of 16 gauge 304 stainless steel, this new NEMA box is ideal for harsh environments and applications where sturdy steel, security, and a seal against moisture are required. It is suitable for outdoor applications such as wind turbines and solar power systems, as well as for housing industrial controls in wash-down, marine, and corrosive environments in the food or medical industries. The SNB-3741-SS has continuous welded seams and a hinged cover that has a water-tight seal. The hinged cover clamps to the base with a keyed quarter-turn latch that requires a non-traditional key for added security. External mounting brackets allow the box to be mounted on a wall or panel without having to remove the cover and expose internal components to the environment. Enclosures are designed to meet NEMA 1, 2, 4, 4X, 12, and 13 requirements.

Features

  • Continuous Seam Welded 16 Gauge Steel or Stainless Steel Construction
  • Hinged Cover Clamps to the Base with Quarter-Turn Latch for a Water-Tight Seal

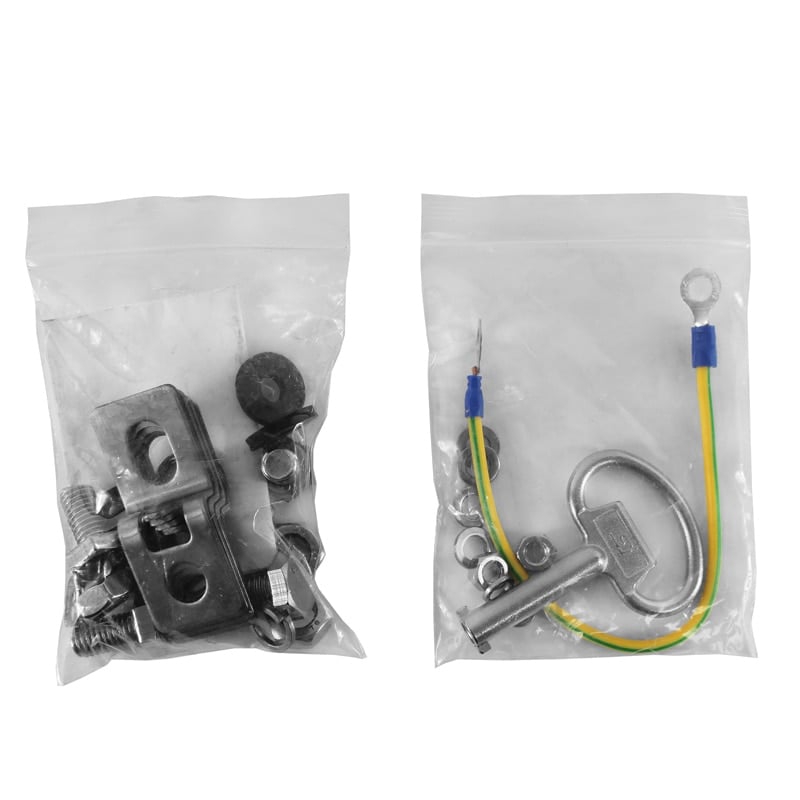

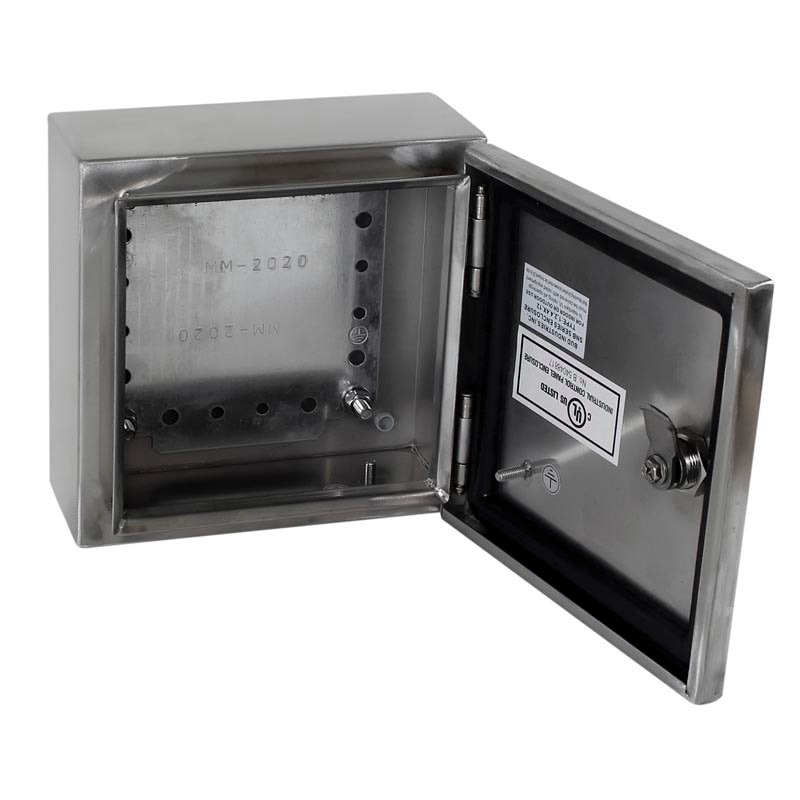

  • Internal Panel and Hardware Included
  • UL Listed Type 1, 2, 4, 4X, and 12; IP66 Rating
  • Finish: Natural Stainless steel, Internal Panel - Clear Zinc plate

    • Specification

    Brand/Series
    • SNB Series
    Color
    • Gray
    Configuration
    • Smooth Wall
    Cover Locking
    • Quarter-Turn Latch
    Cover Mounting
    • Hinged
    Dimensions
    • 9.84 x 7.87 x 3.98 In.
    Enclosure Mounting
    • Wall Mount
    Finish
    • Smooth Gray Powder Coat
    IP Rating
    • IP66
    Material
    • Steel
    NEMA Rating
    • 13
    Size
    • Small
    Type
    • Junction Box
