Caddy CAT21HP 1-5/16" J-Hook w/ Hammer-On 1/8" Thru 1/4" Flange Clip, CAT6a Compliant

Reference#: 67684

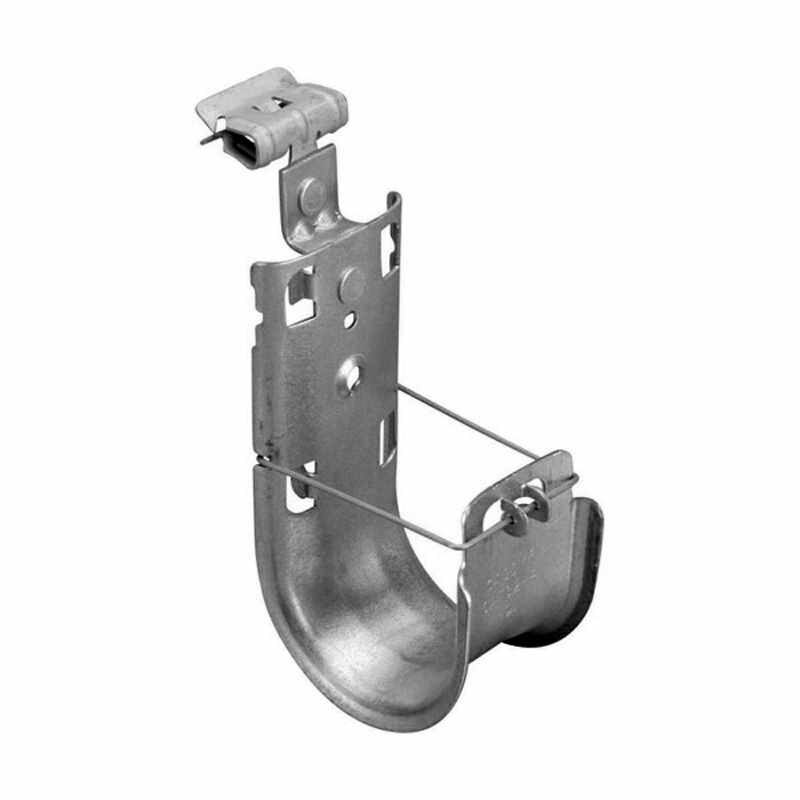

CADDY CAT21HP24SM J-Hooks have a wide base design and smooth beveled edges to provide a large bending radius for current and future high-performance data cables, fiber optic cables, innerduct and coax cables. Individual CADDY CAT21HP24SM J-Hooks can be fastened directly to the building structure or can be used to expand existing CADDY CAT HP J-Hook cable supports. The J-Hooks are designed to provide a strong and stable pathway support installation. The attached hammer on flange (24SM) is pre-installed, making installation fast and easy on 1/8" Thru 1/4" flanges.

The CAT21HP24SM 1-5/16" j-hooks can hold approximately 50 Cat5e cables, 40 Cat6 cables or 25 Cat6a cables.

For larger jobs with more cables, you may want to consider the CAT32HP J Hook, or theCAT48HP J Hook.

CAT21HP24SM j-hooks are sold individually at Discount Low Voltage. Full box quantity is 50 pieces.


  • Requires only a hammer to install
  • Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
  • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
  • Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
  • Cost effective alternative to expensive cable tray
  • Complies with EN 50174-2
  • Meets ISO®/IEC 14763-2, TIA 568-C and TIA 569-C


Part Number: CAT21HP24SM
Material: Steel. Spring Steel
Finish: Pregalvanized, CADDY ARMOUR
Diameter (Ø): 1 5/16"
Area: 2.29 in²
Cable Capacity, Cat 5e: 50
Cable Capacity, Cat 6: 40
Cable Capacity, Cat 6A: 25
Flange Thickness (FT): 1/8" – 1/4"
Static Load (F): 60 lb
Certifications: cULus
Standard Packaging Quantity: 50 pc (sold individually)
UPC: 78285685015
EAN-13: 8711893143195
