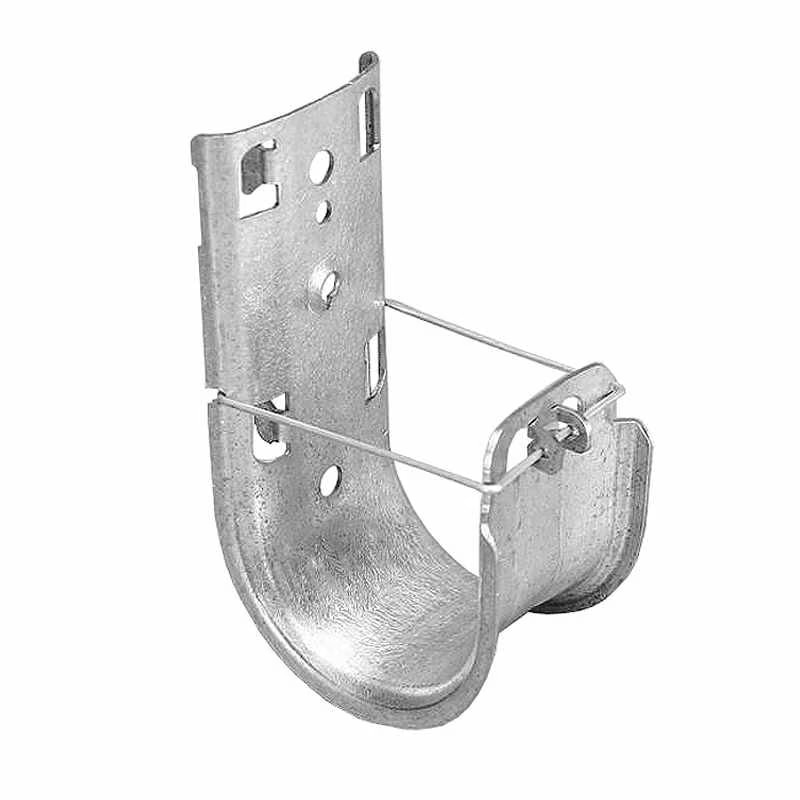

Caddy CAT48HP 3" J-Hook, CAT6a Compliant

$8.20
Reference#: 68966
Item#: ERICO-CAT48HP



Description

CADDY CAT48HP J-Hooks have a wide base design and smooth beveled edges to provide a large bending radius for current and future high-performance data cables, fiber optic cables, innerduct and coax cables. Individual CADDY CAT48HP J-Hooks can be fastened directly to the building structure or can be used to expand existing CADDY CAT HP J-Hook cable supports. The J-Hooks are designed to provide a strong and stable pathway support installation.

The CAT48HP 3" j-hooks can hold approximately 200 Cat5e cables, 150 Cat6 cables or 80 Cat6a cables.

You may also consider the larger CAT64HP J-Hook, or a smaller CAT32HP J-Hook.

CAT48HP j-hooks are sold individually at Discount Low Voltage. Full box quantity is 25 pieces.

Features

  • Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fiber optic
  • Rounded edges on J-Hooks provide proper bend radius support for high performance data cables
  • Multiple color options aid in the identification and organization of the pathway application
  • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
  • Compliant with UL® 2043 and suitable for use in air handling (plenum) spaces
  • Tested according to DIN 4102-12
  • Complies with EN 50174-2
  • Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569

    • Specification

    Part Number CAT48HP
    Material: Steel
    Finish: Pregalvanized
    Diameter (Ø): 3"
    Area: 9.26 in²
    Cable Capacity, Cat 5e: 200
    Cable Capacity, Cat 6: 150
    Cable Capacity, Cat 6A: 80
    Static Load (F): 60 lb
    Certifications: cULus, DIN 4102-12 abP P-3117/339/14-MPA BS (Germany)
    Standard Packaging Quantity: 25 pieces (sold individually)
    UPC: 78285661762
    EAN-13: 8711893048834
