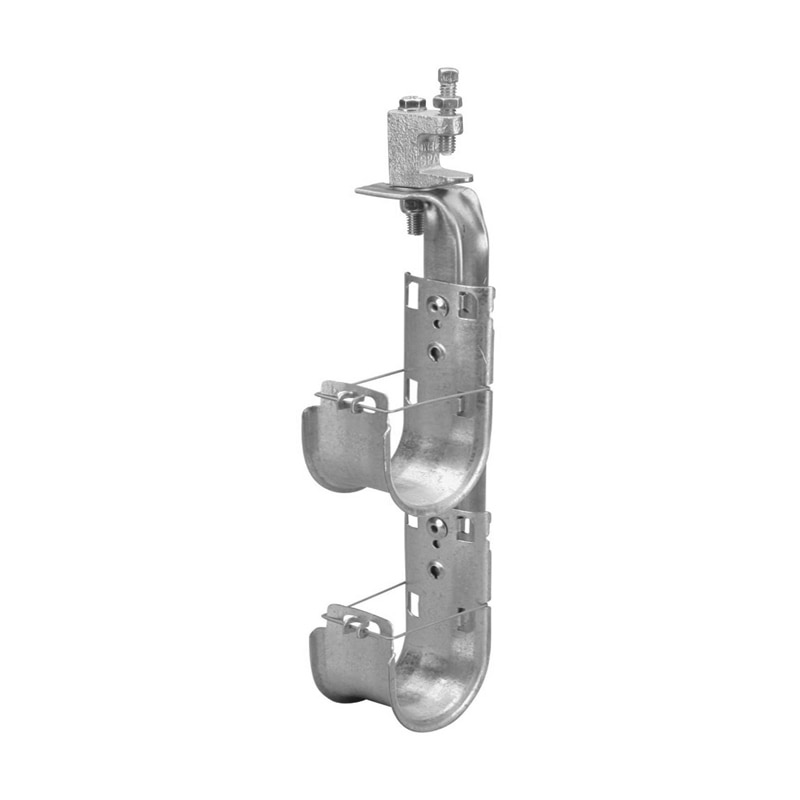

ERICO CAT64HPSFM2 J-Hook Tree, Flange Mount, Single Sided, 4" diameter, 2 Tier (5 pcs)

$214.00
Reference#: 76590
Item#: ERICO-CAT64HPSFM2



Description

Static loads represent maximum load limit of J-Hook tree. Static load limit of each J-Hook is 60 lb (270 N).  Setscrew must be tightened and torqued onto the sloped side of the I-beam.  Non-continuous supports may not exceed spacing of 5' (1.5 m) per TIA 569-C.9.7 and EN 50174-2.  Recognizing that torque wrenches are generally not used or available on many job sites, the setscrew should be tightened so it contacts the I-beam and then an additional 1/4 to 1/2 turn added.

Features

  • Easy installation to beam flanges
  • Provides optimal support for high-performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fibre optic
  • Ready to use out of the box, saving installation time and labor
  • Requires no screws, rivets or special tools for assembly
  • Single- or double-sided tree configurations provide multiple J-Hooks with one structural attachment
  • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
  • Complies with EN 50174-2
  • Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569

Specification

Material
  • Steel
Finish
  • Pregalvanized
Type
  • Single Sided
Diameter (Ø)
  • 4"
Tiers
  • 2
Flange Thickness (FT)
  • 13/16" Max
Height (H)
  • 15 1/4"
Width (W)
  • 5 7/16"
A
  • 1 1/8"
B
  • 2"
Torque (TQ)
  • 5 ft lb
Static Load (F)
  • 120 lb
Standard Packaging Quantity
  • 5 pc
UPC
  • 78285680068
EAN-13
  • 8711893137064
