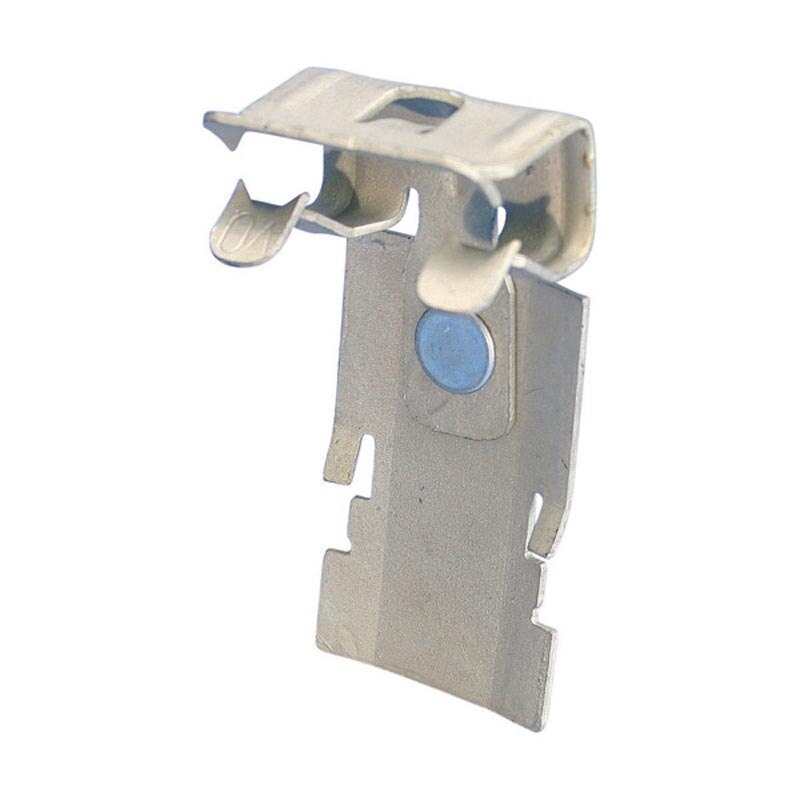

CADDY CAT HP J-Hook Clip to Hammer-On Flange Clip, 5/16"–1/2" Flange

$2.29
Reference#: 76660
Item#: ERICO-CATHP58SM



Description

This Caddy Erico CATHP58SM requires only a hammer to install. Requires no screws, rivets or special tools for assembly. CADDY CAT HP components easily attach to any size CADDY CAT HP J-Hook.

Features

  • Requires only a hammer to install
  • Requires no screws, rivets or special tools for assembly
  • J-Hooks feature bendable locking tabs that lock on to CADDY CAT HP components to provide rigidity and stability
  • Link to J-Hooks in one of multiple color options to aid in pathway identification and organization
  • Customized J-Hook trees can be easily assembled with various J-Hook sizes, colors and configurations
  • CADDY CAT HP components easily attach to any size CADDY CAT HP J-Hook

Specification

Part Number
  • CATHP58SM

Material
  • Spring Steel

Finish
  • CADDY ARMOUR

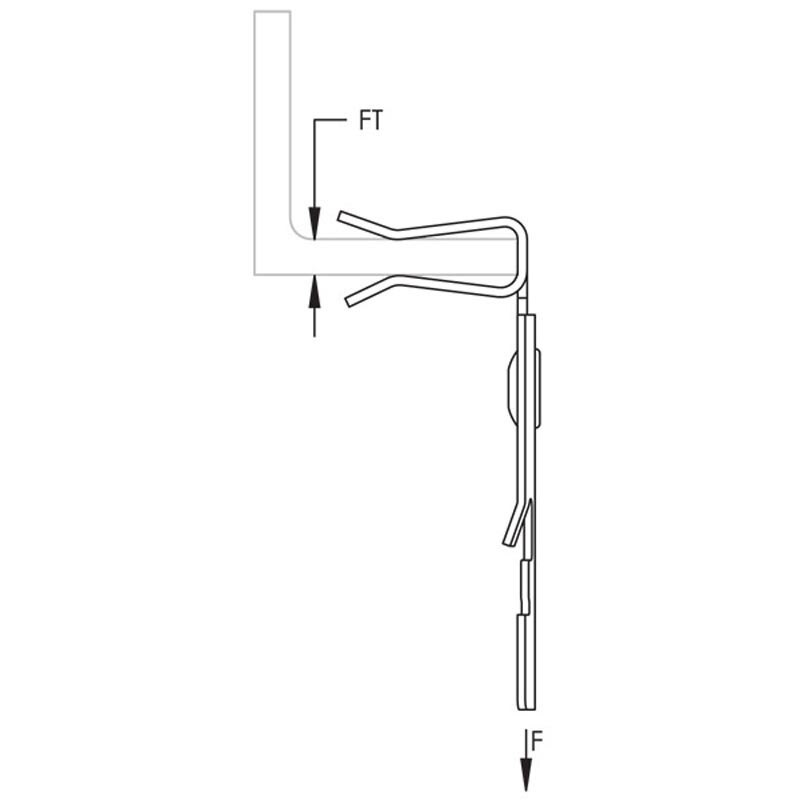

Flange Thickness (FT)
  • 5/16" – 1/2"

Static Load (F)
  • 200 lb

Certifications
  • cULus

DIN
  • 4102-12 abP P-3117/339/14-MPA BS (Germany)

Standard Packaging Quantity
  • 50 pc

UPC
  • 78285661775

EAN-13
  • 8711893048964
