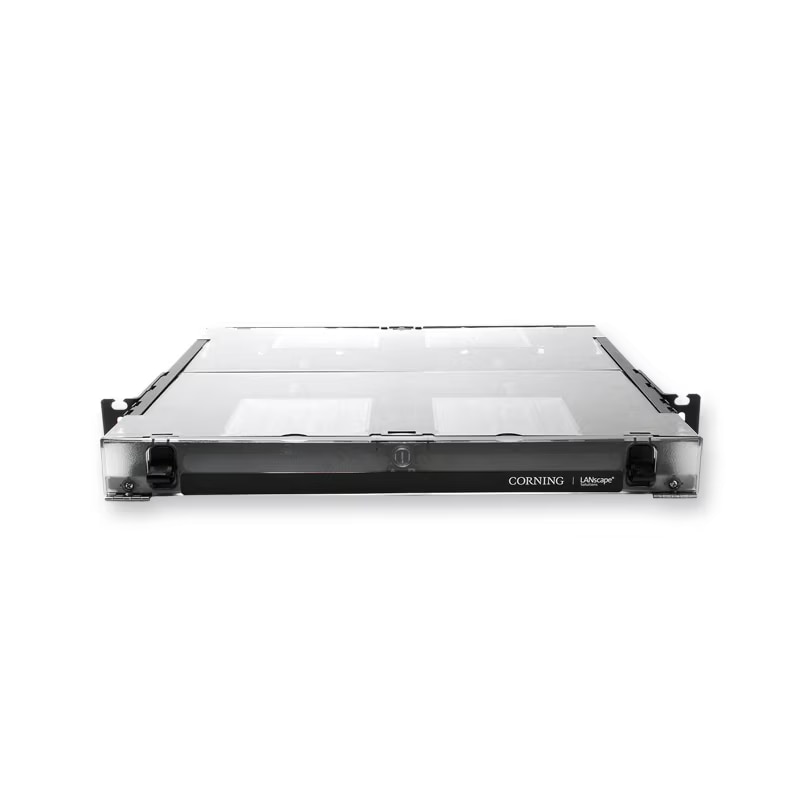

Corning 1U Closet Connector Housing accepts up to 2 CCH panels

Reference#: 69187
Item#: COR-CCH-01U


Corning Cable Systems Closet Connector Housings (CCHs) provide interconnect or cross-connect capabilities between the outside plant, riser or distribution cables and the opto-electronics. The housings accept CCH connector panels. The units are designed for rack mounting in 19 in (48 cm) racks or optional 23-in (58 cm) equipment racks (1.75-in EIA hole spacing).

Closet Connector Housings can be ordered with connector panels for multimode and single-mode applications. Documentation labels are provided and components can be added as needed to construct a fiber distribution frame for any application. The units include multiple locations for jumper egress and come with the universal cable clamp for cable strain-relief.


Interconnect and cross-connect capability Ideal for field connectorization

Field-installed lock kit for security

Quality tested - Meets ANSI/TIA/EIA-568A and 606

Mounting provisions for buffer tube fan-out kits - Ideal for field connectorization

Housings have sliding tray (01U and 02U) or open top at front (03U and 04U)


Dimensions (HxWxD) (1.75" x 19" x 17")
