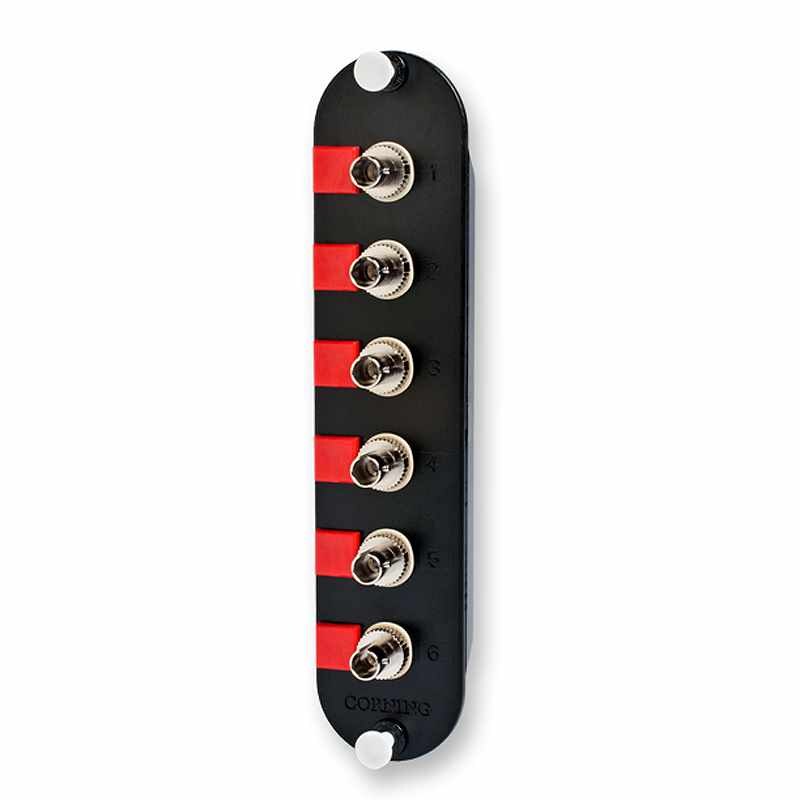

Corning 6 Port ST Panel - Multimode

Reference#: 69191
Item#: COR-CCH-CP06-15T


Corning Cable Systems Closet Connector Housing Panels (CCH-CP) are offered in a variety of fiber counts for use with LANscape® Solutions hardware products for a “one-size-fits-all” approach. Used with factory-installed or field-installable connectors, these panels provide interconnect or cross-connect capability in a housing at main cross-connects, intermediate cross-connects, telecommunication rooms or work areas. Available with a variety of industry-standard adapter types, the CCH-CP provides an efficient way to securely mate two connectors and offers multimode and single-mode applications in 6-, 8-, 12-, 16- and 24-fiber count options, plus 36-, 72-, 96- and 144-fiber count options with MTP® Connector adapters.

* For installation with Corning boxes only


- Universal design approach
- One-size-fits-all LANscape® Solutions housings
- Broadest range of fiber count and adapter types
- Solutions for all needs
- Colored icon labeling
- Easy connector identification


General Specifications

Application - Enterprise Networks, Data Center
Product Type - Panels & Modules
Fiber Category - 62.5 µm MM (OM1)

Design - Hardware

Connector Polish - UPC
Fiber Count - 6
Number of Adapters per Panel - 6

Design Adapter

Adapter Housing Color - Beige
Adapter Housing Material - Metal
Adapter Style - Standard
Adapter Type - ST® Compatible
Insert Material - Ceramic

Chemical characteristics

RoHS - Free of hazardous substances according to RoHS 2002/95/EG
