Corning 12 Port ST 62.5MM Panel

Reference#: 69197
Item#: COR-CCH-CP12-15T

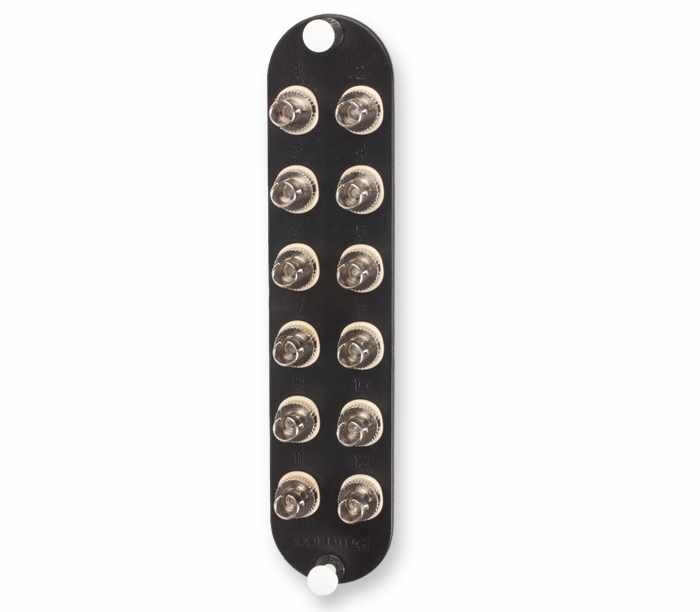

This Corning ST fiber panel is for use with 62.5 multimode fiber optic cable and connectors. Loaded with 12 ST couplers, this panel is capable of holding 12 strands of fiber optic cable. Corning Cable Systems Closet Connector Housing Panels (CCH-CP) are offered in a variety of fiber counts for use with LANscape® Solutions hardware products for a “one-size-fits-all” approach. Used with factory-installed or field-installable connectors, these panels provide interconnect or cross-connect capability in a housing at main cross-connects, intermediate cross-connects, telecommunication rooms or work areas. Available with a variety of industry-standard adapter types, the CCH-CP provides an efficient way to securely mate two connectors and offers multimode and single-mode applications in 6-, 8-, 12-, 16- and 24-fiber count options, plus 36-, 72-, 96- and 144-fiber count options with MTP® Connector adapters.

* For installation with Corning boxes only


- Universal design approach
- One-size-fits-all LANscape® Solutions housings
- Broadest range of fiber count and adapter types
- Solutions for all needs
- Colored icon labeling
- Easy connector identification


General Specifications

Application - Enterprise Networks, Data Center
Product Type - Panels & Modules
Fiber Category - 62.5 µm MM (OM1)

Design - Hardware

Connector Polish - UPC
Fiber Count - 12
Number of Adapters per Panel - 12

Design Adapter

Adapter Housing Color - Beige
Adapter Housing Material - Metal
Adapter Style- Standard
Adapter Type - ST® Compatible
Insert Material - Ceramic

Chemical characteristics

RoHS - Free of hazardous substances according to RoHS 2002/95/EG
