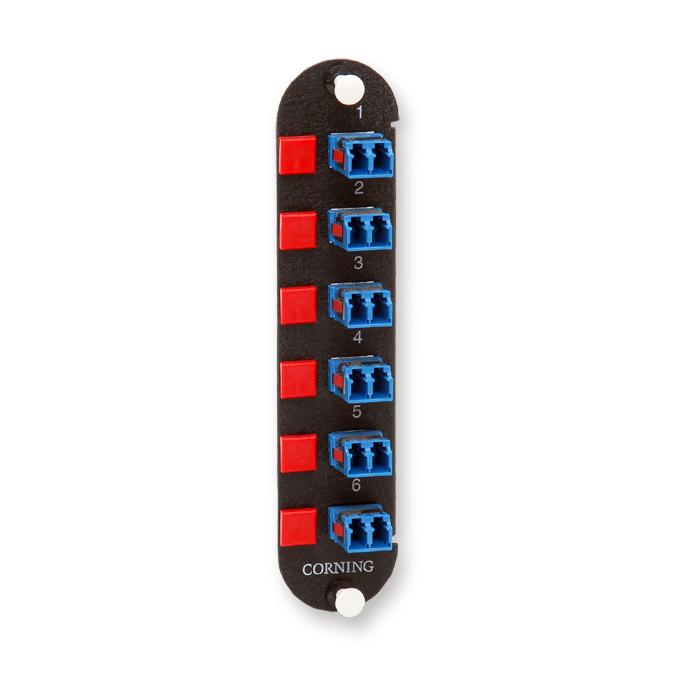

Corning 6 Port Duplex (12 Fiber) LC Singlemode (OS2) CCH Panel

The Corning CCH-CP12-A9 loaded LC fiber CCH panel has 6 duplex LC couplers, capable of holding 12 strands of fiber optic cable. This panel is for use with singlemode fiber optic cable and connectors. Corning Cable Systems Closet Connector Housing Panels (CCH-CP) are offered in a variety of fiber counts for use with LANscape® Solutions hardware products for a “one-size-fits-all” approach. Used with factory-installed or field-installable connectors, these panels provide interconnect or cross-connect capability in a housing at main cross-connects, intermediate cross-connects, telecommunication rooms or work areas. Available with a variety of industry-standard adapter types, the CCH-CP provides an efficient way to securely mate two connectors and offers multimode and single-mode applications.

* CCH Panels fit Corning fiber boxes only

- One-size-fits-all LANscape Solutions housings
- Corning offers the broadest range of fiber count and adapter types
- Colored icon labeling
- Easy connector identification

Application Enterprise Networks, Data Center
Product Type Panels & Modules
Fiber Category SM

Design - Hardware

Connector Polish UPC
Fiber Count 12
Number of Adapters per Panel 12

Design Adapter

Adapter Housing Color Beige
Adapter Housing Material Composite
Adapter Style Standard
Adapter Type LC duplex
Insert Material Ceramic

Chemical characteristics

RoHS Free of hazardous substances according to RoHS 2002/95/EG
