Corning 6 Port Duplex LC Panel - 50 Micron OM3/OM4/10G

Reference#: 69202
Item#: COR-CCH-CP12-E4

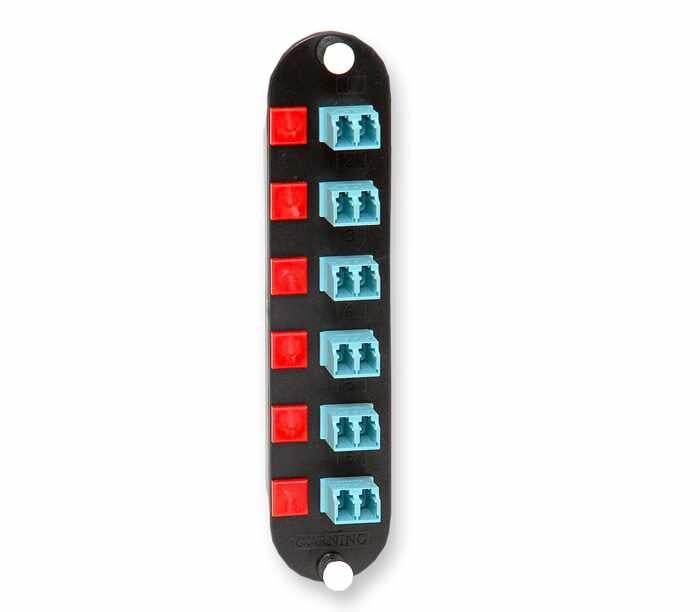

The Corning CCH-CP12-E4 is a loaded fiber panel, with 6 duplex LC couplers capable of holding 12 strands of fiber optic cable. The CCH-CP12-E4 is for use with 50 micron OM3/OM4/10G fiber cable and connectors. Corning Cable Systems Closet Connector Housing Panels (CCH-CP) are offered in a variety of fiber counts for use with LANscape® Solutions hardware products for a “one-size-fits-all” approach. Used with factory-installed or field-installable connectors, these panels provide interconnect or cross-connect capability in a housing at main cross-connects, intermediate cross-connects, telecommunication rooms or work areas. Available with a variety of industry-standard adapter types, the CCH-CP provides an efficient way to securely mate two connectors and offers multimode and single-mode applications.

* For installation with Corning boxes only


- Universal design approach
- One-size-fits-all LANscape® Solutions housings
- Broadest range of fiber count and adapter types
- Solutions for all needs
- Colored icon labeling
- Easy connector identification


General Specifications

Application - Enterprise Networks, Data Center
Product Type - Panels & Modules
Fiber Category - 50 µm MM (OM3/OM4/OM4 extended 10G distance)

Design - Hardware

Connector Polish - UPC
Fiber Count - 12
Number of Adapters per Panel - 12

Design Adapter

Adapter Housing Color - Aqua
Adapter Housing Material - Composite
Adapter Style - Standard
Adapter Type - LC duplex
Insert Material - Ceramic

Chemical characteristics

RoHS - Free of hazardous substances according to RoHS 2002/95/EG
