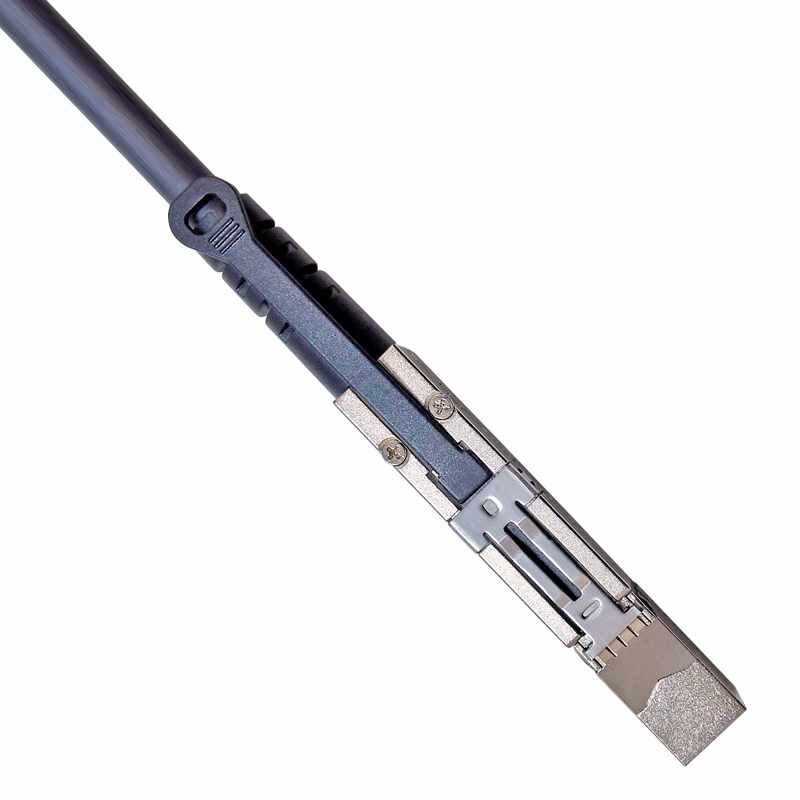

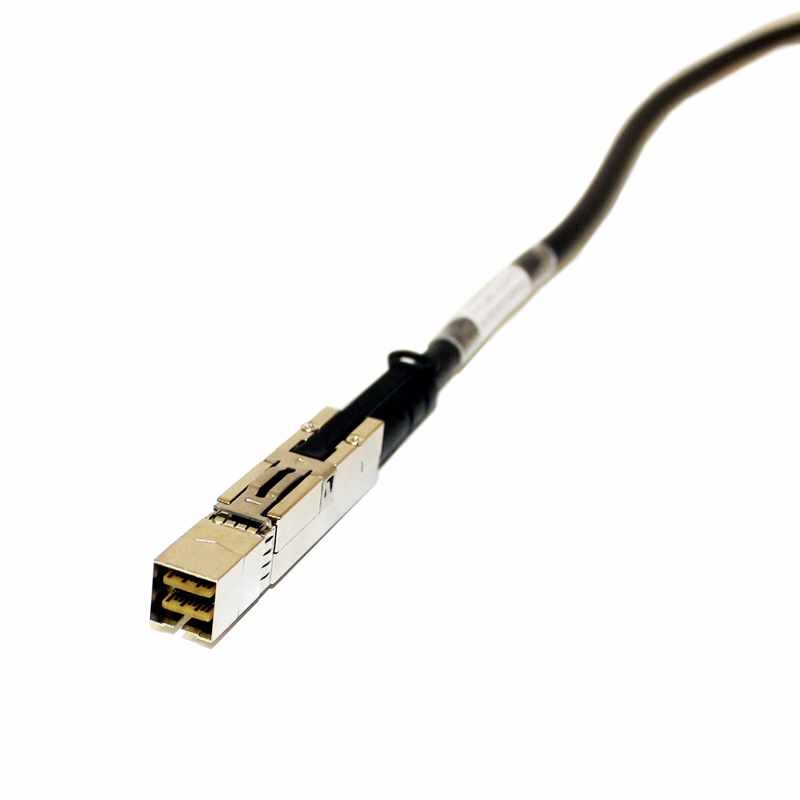

ConnPro Industries Inc. Slim SAS HD Passive Cable for SAS 3.0 (12G per Lane) 2M * Limited to quantity on hand *

ConnPro High Speed Mini-SAS HD 4X Assemblies are designed for data centers, networking and HPC (High Performance Computing) applications. Conforming to SFF-8644 Mechanical requirement, ConnPro High Speed provides high quality and cost effective solution to the high-density enterprise storage cross-connections of your data centers.

• SFF-8644 Mechanical requirement compliance • SFF-8636 I2C EEPROM for system configuration • Compliant with SAS 2.1 / SAS 3.0 external cable performance criteria • Broadband Twin coaxial pairs support serial data both 6Gbps/12Gps • Enhanced EMI prevention by EMI skirt & die-cast cover • Low transmission latency, Low cross-talk & Low skew, Reliable performance • Pull Tape & latch enable a easy cable installation, hot plug & stable connection • RoHS compliant, 100% factory independently tested, anti-static package • Reduced connector size safe more space for system designer

• Cable 8 Pairs twin coaxial cable,100ohm , PVC Black , UL Approved • Shell Zinc Diecast with Ni Plated • PCB FR4 ,30u inch Au plated contact pads • EEPROM 4X serial I2C interface • Operating Temperature -10? ~ 80? • Voltage 30V AC(RMS)/DC Max • Current 0.5 Amps Max • Mating/Un-mating Force 150N/50N Max • Durability 250 cycle Min • Available Length Up to 3Meter
