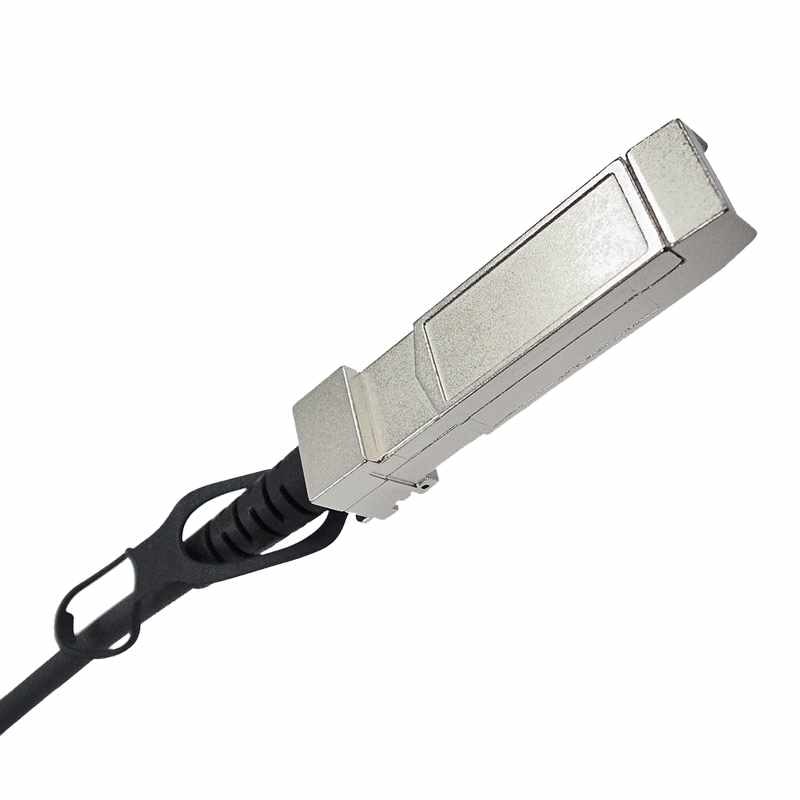

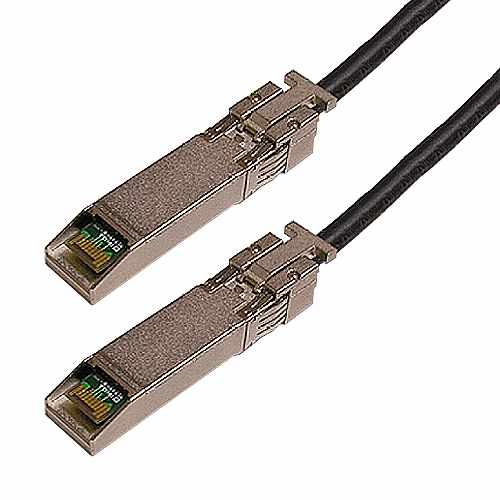

ConnPro SFP+ to SFP+ 10 Gigabit Passive Direct Attach Cable 2M * Limited to quantity on hand *

ConnPro High Speed QSFP+ to SFP+ Direct Attach Copper Cable Assemblies are designed for data centers, networking and HPC (High Performance Computing) applications. Conforming to SFF-8436 and SFF-8431 ConnPro High Speed provides high quality and cost effective solution to the high-density network switching cross-connections of your data centers.

• SFF-8431 SFP+ interface compliant product • Fully Compliant to SFP+ EEPROM for signature and system communications • Broadband Twin coaxial pairs support serial data rate up to 12Gbps • Enhanced EMI prevention by EMI skirt & die-cast cover • Low power consumption, Low transmission latency, Low cross-talk & Low skew • Pull to release latch enable a easy cable installation and hot plug • S/R design ensures a reliable performance when cable is bended • RoHS compliant, 100% factory independently tested, anti-static package • Highly cost-effective alternative to optical interface in short reach • APPLICATIONS • Network data transmission: Severs, Switches, Routers &Hubs • Network or External storage systems for data center • Network interface cards (NIC’s) & Telecommunication equipments • 10 Gigabit Ethernet and Gigabit Ethernet • Fiber Channel over Ethernet • InfiniBand Standards SDR, DDR, QDR

Cable 2 Pairs twin coaxial cable,100ohm , PVC Black , UL Approved Shell Zinc Diecast with Ni Plated PCB FR4, 30uinch Au plated contact pads EEPROM 2-wire serial I2C interface Operating Temperature 0? ~ 70? Operating Voltage 3.3 V Retention Force 90N Max Durability 50 cycle Min Available Length 1, 2, 3, 4, 5, 6, 7 Meter
