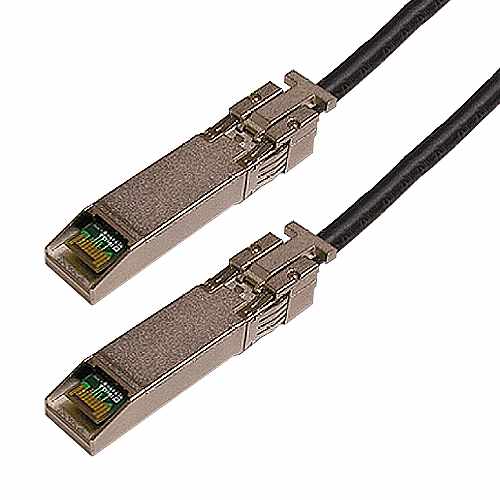

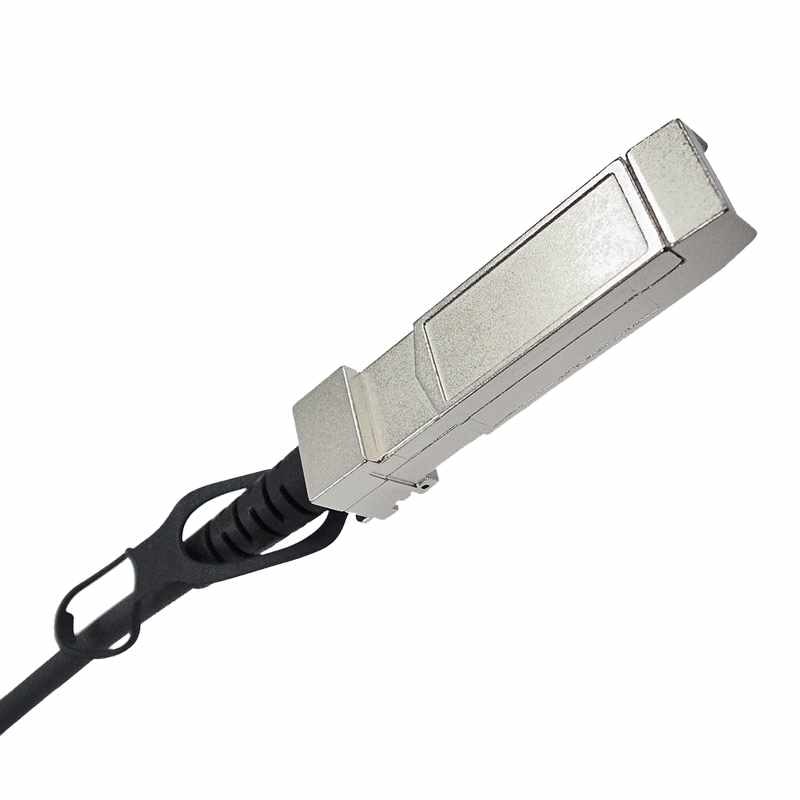

ConnPro SFP+ to SFP+ 10 Gigabit Passive Direct Attach Cable 5M * Limited to quantity on hand *

Reference#: 69008
Item#: CN-TF2T50001


ConnPro High Speed QSFP+ to SFP+ Direct Attach Copper Cable Assemblies are designed for data centers, networking and HPC (High Performance Computing) applications. Conforming to SFF-8436 and SFF-8431 ConnPro High Speed provides high quality and cost effective solution to the high-density network switching cross-connections of your data centers.


  • SFF-8431 SFP+ interface compliant product • Fully Compliant to SFP+ EEPROM for signature and system communications
  • Broadband Twin coaxial pairs support serial data rate up to 12Gbps
  • Enhanced EMI prevention by EMI skirt & die-cast cover
  • Low power consumption, Low transmission latency, Low cross-talk & Low skew
  • Pull to release latch enable a easy cable installation and hot plug
  • S/R design ensures a reliable performance when cable is bended
  • RoHS compliant, 100% factory independently tested, anti-static package
  • Highly cost-effective alternative to optical interface in short reach
  • APPLICATIONS • Network data transmission: Severs, Switches, Routers &Hubs
  • Network or External storage systems for data center
  • Network interface cards (NIC’s) & Telecommunication equipments
  • 10 Gigabit Ethernet and Gigabit Ethernet
  • Fiber Channel over Ethernet
  • InfiniBand Standards SDR, DDR, QDR


Cable 2 Pairs twin coaxial cable,100ohm , PVC Black , UL Approved Shell Zinc Diecast with Ni Plated PCB FR4, 30uinch Au plated contact pads EEPROM 2-wire serial I2C interface Operating Temperature 0? ~ 70? Operating Voltage 3.3 V Retention Force 90N Max Durability 50 cycle Min Available Length 1, 2, 3, 4, 5, 6, 7 Meter
