Corning 6 Strand Singlemode Indoor Armored Riser Fiber Optic Cable - Yellow (Per Foot)
$1.37
Reference#: 69031
Item#: COR-006E81-31131-A1
Item#: COR-006E81-31131-A1
Description

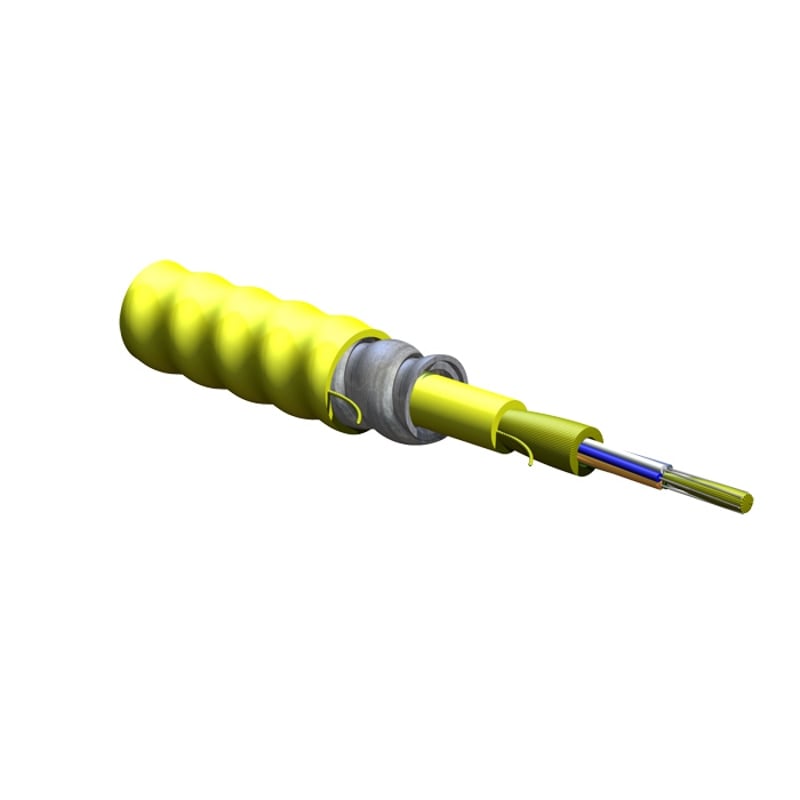

Corning Cable Systems MIC® Interlocking Armored Riser Cables are designed for use in intrabuilding backbone and horizontal installations. They use individually jacketed TBII® Buffered Fibers enabling easy, consistent
stripping and facilitating termination. The fibers are grouped into jacketed subunits and surrounded by a dielectric central member. The core is protected by a flexible, spirally wrapped, aluminum interlocking armor
that offers easy, one -step installation and over seven times the crush protection of unarmored cables. With a flame -retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical
exposure conditions and applications requiring extra rug-ged cables.
stripping and facilitating termination. The fibers are grouped into jacketed subunits and surrounded by a dielectric central member. The core is protected by a flexible, spirally wrapped, aluminum interlocking armor
that offers easy, one -step installation and over seven times the crush protection of unarmored cables. With a flame -retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical
exposure conditions and applications requiring extra rug-ged cables.
Features
Flexible, interlocking armor design
- Seven times crush protection compared to unarmored cables
- Easy, consistent stripping
- Rugged and durable
- National Electrical Code® (NEC®) OFCR, CSA FT-4,ICEA S-83-596
- UL-1666 (for riser and general building applications)
Specification
Environment
- Indoor
Application
- General Purpose Horizontal, Vertical Riser
Cable Type
- Tight-Buffered
Product Type
- Interlocking armor
Flame Rating
- Riser (OFCR)
Fiber Category
- Single-mode (OS2)
