Corning 6 Strand Singlemode Indoor Armored Plenum Fiber Optic Cable - Yellow (Per Foot)

$1.67
Reference#: 69034
Item#: COR-006E88-31131-A3



Description

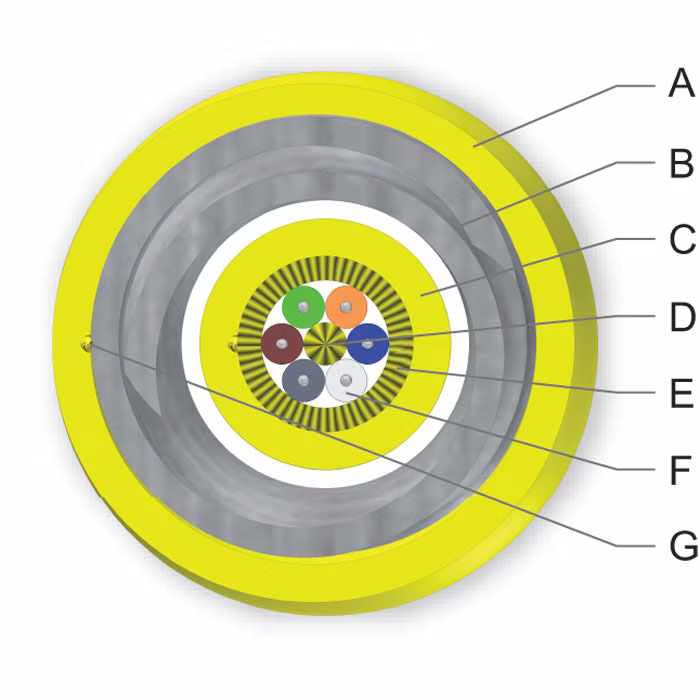

Corning Cable Systems MIC® Interlocking Armored Plenum Cables are designed for use in plenum, riser and general purpose environments for intrabuilding backbone and horizontal installations. These multifiber cables use individually jacketed TBII® Buffered Fibers enabling easy, consistent stripping and facilitating termination. The fibers are grouped into jacketed subunits and surrounded by a dielectric central member.

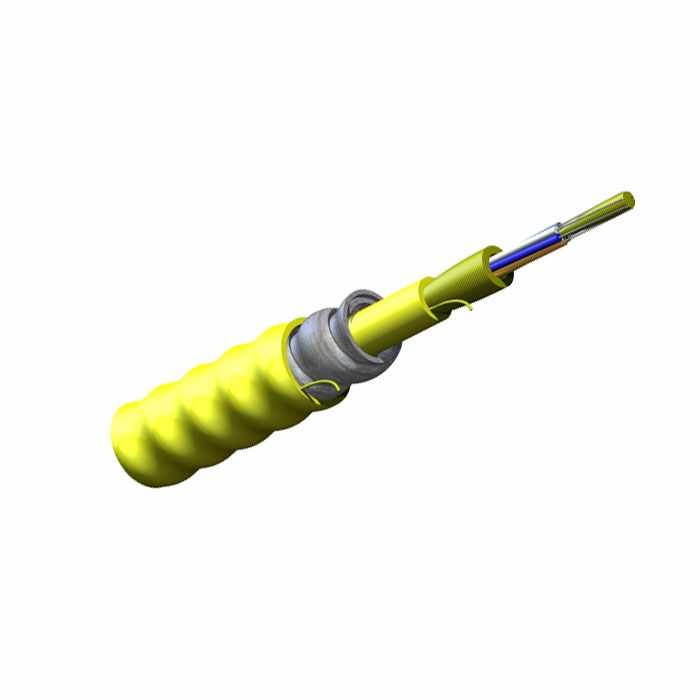

The core is protected by a flexible, spirally wrapped, aluminum interlocking armor that offers easy, one-step installation and over seven times the crush protection of unarmored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables.

Features

  • Tight buffered cable design eliminates the need for fan-out kits
  • Interlocking armor offers seven times the cable protection of standard cable - no conduit needed
  • Patented TBII dual acrylate slip layer provides faster, easier stripping
  • Flexible, interlocking armor design
  • TBII® Buffered Fibers
  • Easy, consistent stripping
  • Flame-retardant jacket
  • Rugged and durable

Specification

Nominal Weight
  • 77
Nominal Outer Diameter
  • 0.47 in
Minimum Bend Radius
  • Loaded: 17.9 cm (7.0 in)
  • Installed: 11.9 cm (4.7 in)
Maximum Tensile Loads
  • Short-Term: 660 N (150 lbf)
  • Long-Term: 200 N (45 lbf)

Temperatures

  • Storage: -40° to +70°C (-40° to +158°F)
  • Installation: -10° to +60°C (+14° to +140°F)
  • Operation: -20° to +70°C (-4° to +158°F)

Approvals and Listings

  • National Electrical Code ® (NEC) OFCR, CSA FT-4, ICEA S-83-596

Design and Test Criteria

  • UL-1666 (For riser and general building applications
