Corning 6 Strand Singlemode Indoor Armored Plenum Fiber Optic Cable - Yellow (Per Foot)
$2.50
Reference#: 69035
Item#: COR-006E88-31131-D3
Item#: COR-006E88-31131-D3
Description

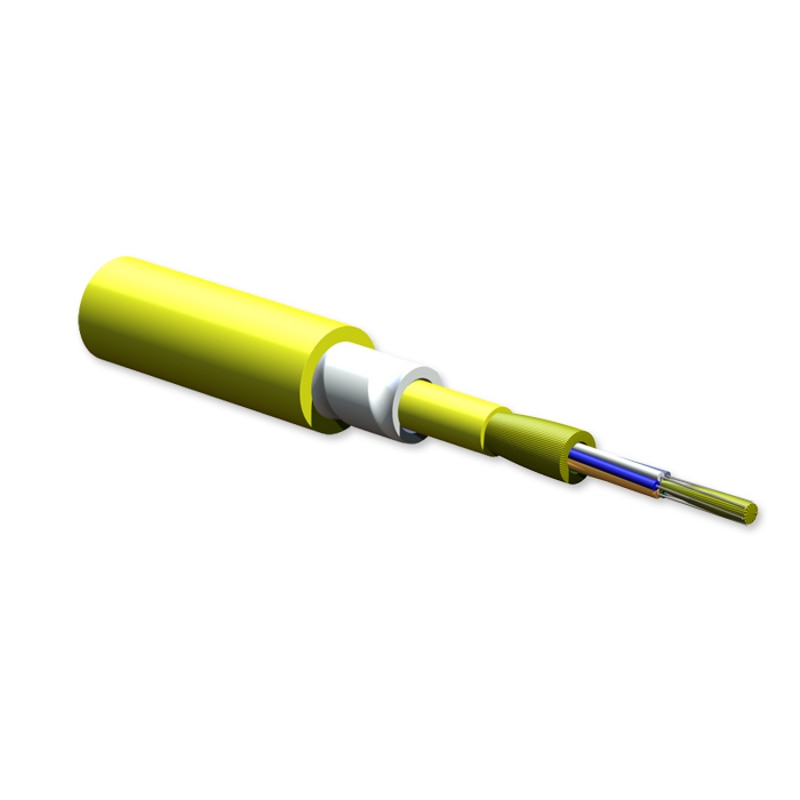

Corning Cable Systems MIC® DX Armored Plenum Cables are standard MIC subunits placed inside a dielec-tric armor for ruggedness and superior crush resistance without the conductive properties of traditional armor. These cables are designed for use in intrabuilding back-bone and horizontal installations. Individually jacketed TBII® Buffered Fibers enable easy, consistent stripping and facilitate termination. The fibers are stranded around a dielectric central mem-ber that is protected by a flexible, all -dielectric armor offering easy, one -step installation and over four times the crush protection of unarmored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical expo-sure conditions and applications requiring extra rugged cables.
Features
Dielectric armor
- Four times crush protection compared to unarmored
- Easy, consistent stripping
- Rugged and durable
- Increased safety and speed at installation
- National Electrical Code® (NEC®) OFNP, CSA FT-6,ICEA S-83-596
- NFPA 262 (for plenum, riser and general building applications)
Specification
Environment
- Indoor
Application
- General PurposeHorizontal, Plenum
Cable Type
- Tight-Buffered
Product Type
- Dielectric armor
Flame Rating
- Plenum (OFNP)
Fiber Category
- Single-mode (OS2)
