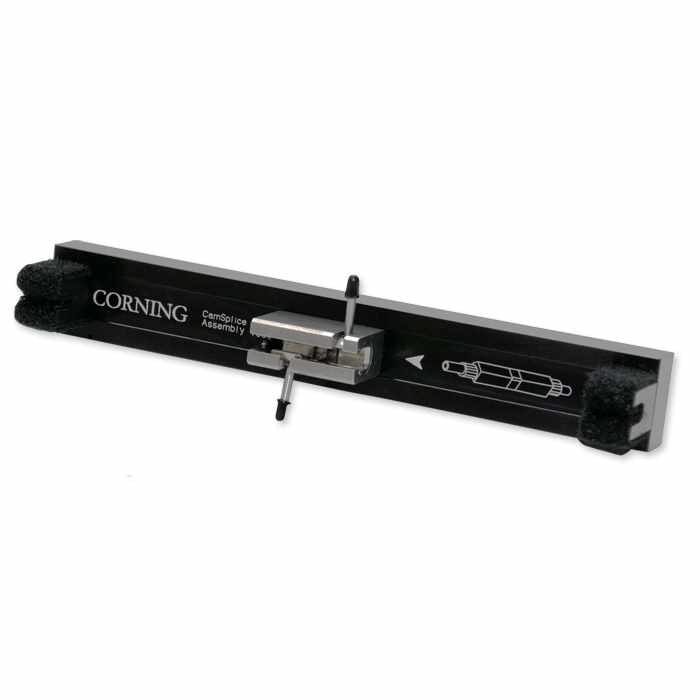

Corning CamSplice Installation Tool

Reference#: 69163
Item#: COR-2104040-01


Corning Cable Systems CamSplice Mechanical Splice is recommended for indoor or outdoor through or branch splicing, transition splicing between listed and non-listed cables, pigtail splicing and is ideal for emergency restoration. Incorporating a unique fiber alignment mechanism that self-centers the fibers and provides accurate alignment, the CamSplice Mechanical Splice requires minimal training and few accessories to assemble. Average “blind” (non-tuned) splice loss is specified at 0.15 dB with a maximum loss less than 0.3 dB.

The one-part-fits-all design accommodates 250/250 μm, 250/900 μm or 900/900 μm applications with an optional lead-in tube for securing 900 μm fibers. With no adhesive or epoxy required, the assembly process involves stripping and cleaving fibers, inserting the fibers into the splice part until they touch and turning the cams to secure the fibers. No special tools or polishing is required, although an optional assembly fixture is recommended and a self-contained tool kit is also available. A typical installation takes less than two minutes and the completed splices fit in Corning Cable Systems splice trays as well as industry-standard splice trays.


- No adhesive or epoxy required
- Reduces splice time with no curing needed
- Universal - One-part-fits-all-fiber-coatings
- No polishing required
- Reduces installation time
- Fiber alignment mechanism
- Self-centers the fiber for accurate alignment end and low loss


General Specifications
Technology : Mechanical Splice
Product Type : Connector Tools and Tool Kits

Mechanical Characteristics
Weight : 0.23 kg (0.5 lb)

Chemical Characteristics
RoHS : Free of hazardous substances according to RoHS 2002/95/EG
