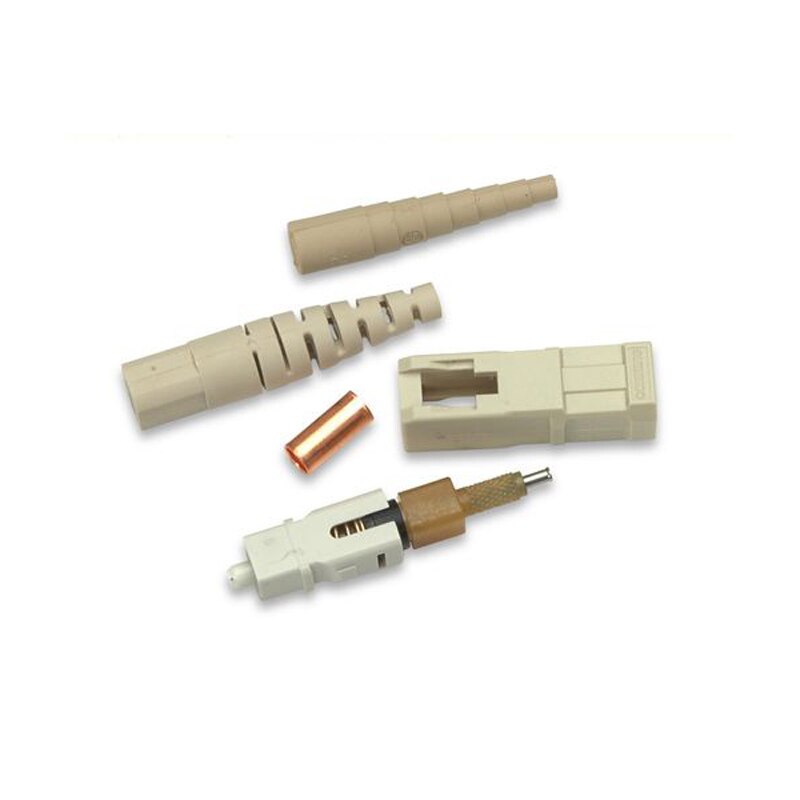

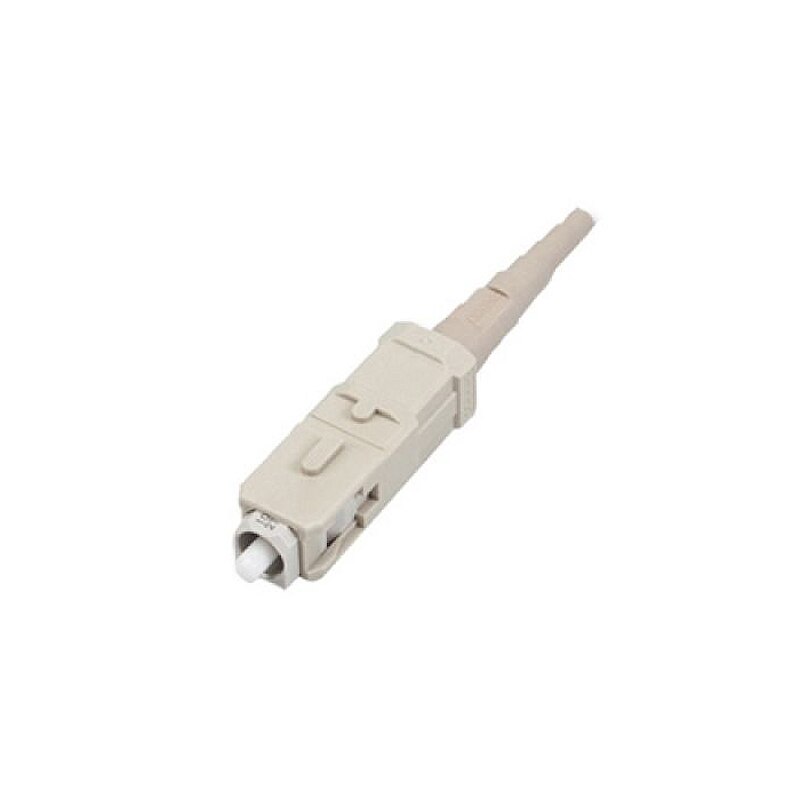

Corning Unicam Standard Performance SC Connector 62.5 OM1 Multimode

Reference#: 69166
Item#: COR-95-000-40


Corning Cable Systems UniCam Multimode Standard-Performance Connectors offer optical performance in a fast, easy field-termination solution ideal for fiber-to-the-workstation applications where setup and tear down time is critical. The high-precision mechanical splice technology enables fiber optic networks to be installed quickly and cost effectively. The lightweight, handheld installation tool and the high-performance cleaver virtually eliminate human variability from installation, ensuring terminations are right the first time, every time. This kit was designed with consideration for network installers, from the cleaver, with its integrated fiber scrap bin and dual-clamp precision hold, to the installation tool, with its immediate go/no-go feedback signal. Installation is as easy as strip, clean, cleave, cam and crimp, with exceptional optical performance guaranteed. Every UniCam Connector is guaranteed to meet the published specification at the time of installation or Corning Cable Systems will replace it.


- Factory-polished end face
- Consistent optical performance
- Fast termination and no consumables
- Low installation cost
- Minimum insertion loss
- Optimum optical performance


Approval and Listings : Compliant with EIA/TIA 568-B.3
Intermateability : Connectors are FOCIS compliant with TIA/EIA 604-3 and IEC61754-4

General Specifications
Product Type : Field-Installable Connectors
Technology : No-Epoxy/No-Polish
Keyed : No
Corning Logo : Yes
Packaging : Single Pack
Fiber Category : 62.5 µm MM (OM1)

Temperature Range
Operation : 0 °C to 60 °C , meets TIA/EIA 568-B.3 (32 °F to 140 °F , meets TIA/EIA 568-B.3)

Design - Connector A
Connector Type : SC
Ferrule : Composite
Housing Material : Composite
Housing Color : Beige
Boot Color : Beige

Mechanical Specifications - Connector A
Durability : ≤ 0.2 dB change by 500 rematings, FOTP-21
Tensile Strength Jacketed Cable : 44 N, change ≤ 0.2 dB, FOTP-6 (10 lb, change ≤ 0.2 dB, FOTP-6)
Tensile Strength 900µ Cable : 2.2 N, change ≤ 0.2 dB, FOTP-6 (0.5 lb, change ≤ 0.2 dB, FOTP-6)
Nominal Fiber Outer Diameter : 125 µm

Optical Specifications - Connector A
Insertion Loss, Typical : 0.3 dB
Insertion Loss, Max. : 0.75 dB
Reflectance : ≤ -20 dB
Polish : UPC

Chemical Characteristics
RoHS : Free of hazardous substances according to RoHS 2002/95/EG
