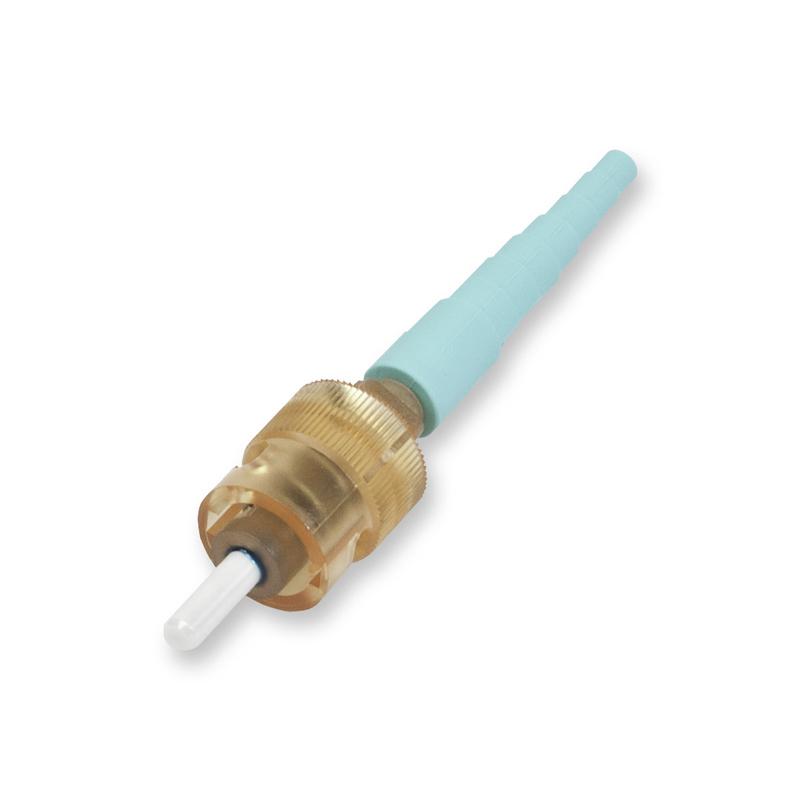

Corning ST Unicam Connector OM3 OM4 rated 50/125 SX+ Pretium

Reference#: 69174
Item#: COR-95-050-51-X


Corning Cable Systems UniCam® High-Performance Connectors offer best-in-class optical performance in a fast, easy field-termination solution. These high-precision connectors guarantee exceptional insert loss – 0.1 dB typical/0.5 dB maximum per connector pair for multimode, 0.2 dB typical/0.5 dB maximum per connector pair for single-mode. Installation of an LC, SC, or ST®Compatible Connector can be accomplished in about 45 seconds with the UniCam High-Performance Tool Kit. The lightweight, handheld installation tool and the high-performance cleaver virtually eliminate human variability from installation, ensuring terminations are right, the first time, every time. This kit was designed with consideration for the network installers, from the cleaver, with its integrated fiber scrap bin and dual-clamp precision hold, to the installation tool, with its immediate go/no-go feedback signal. Installation is as easy as strip, clean, cleave, cam and crimp, with exceptional optical performance guaranteed. Every UniCam Connector is guaranteed to meet the published specification at the time of installation or Corning Cable Systems will replace it.


Broad operating temperature (-40° to +75°C)
  • Utility and flexibility
Factory-polished end face
  • Consistent optical performance
Fast termination and no consumables
  • Low installation cost
Minimum insertion loss
  • Optimum optical performance


Product Type
  • Field-Installable Connectors
  • No-Epoxy/No-Polish
  • No
Corning Logo
  • Yes
  • Single Pack
Fiber Category
  • 50 µm MM (OM3/OM4 compatible)
