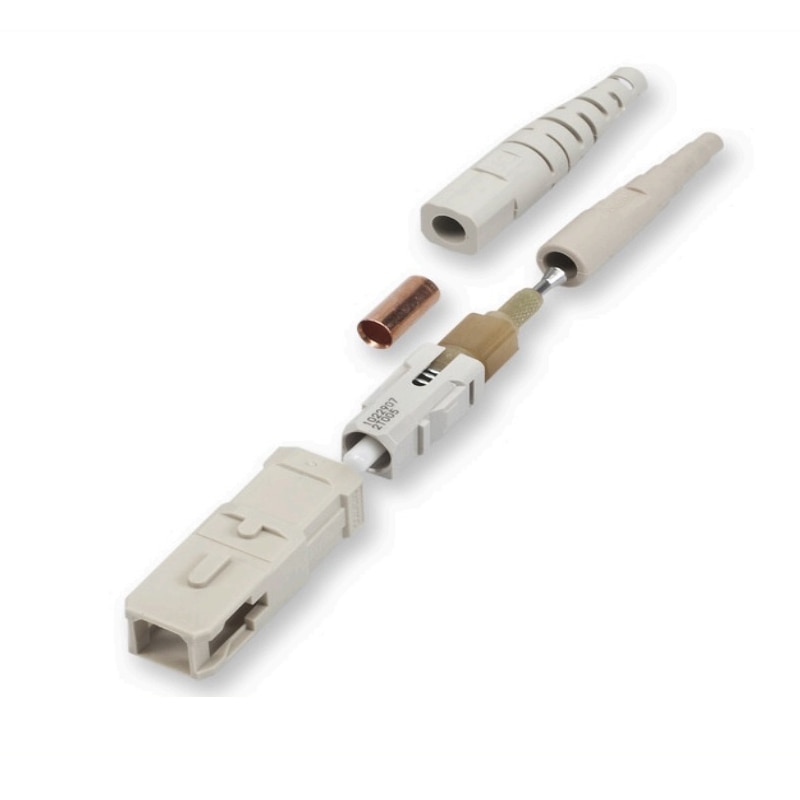

Corning Anaerobic Connector, SC 62.5 µm Multimode (OM1)

$10.35
Reference#: 69178
Item#: COR-95-101-41-SP



Description

Corning Cable Systems Anaerobic -Cure Connectors offer optical performance in a fast, easy field -termination solu-tion designed for fiber -to -the -workstation applications for single -mode and multimode connections. This connector combines the quick -cure convenience of anaerobic ad-hesive with the performance of epoxy -and -polish connec-tors. Ideal for enterprise networks and any installations requiring field -installed connectors, the anaerobic -cure technology enables fiber optic networks to be installed cost effectively with minimal tools.Installation of the con-nector can be accomplished in minutes with the anaero-bic adhesive two -part epoxy process. The adhesive is first injected into the connector ferrule and then the fiber is dipped into the primer and inserted into the connector. Curing takes only one minute without the use of lamps or ovens. With the hand -polish process, an average inser-tion loss of 0.2 dB is achieved.

Features

Quick-cure epoxy
  • No lamps or ovens needed
Minimal tools and no index-matching gel
  • Low installation cost
Hand polished for minimum insertion loss
  • Reliability and optical performance

Intermateability

  • Compliant with TIA/EIA

Technology

  • Field Polish (anaerobic)

Keyed

  • No

Packaging

  • Single Pack

Product Type

  • Field-Installable Connectors

Corning Logo

  • Yes

Fiber Category

  • 62.5 µm MM (OM1)

Specification

Technology
  • Field Polish (anaerobic)
Keyed
  • No
Packaging
  • Single Pack
Product Type
  • Field-Installable Connectors
Corning Logo
  • Yes
Fiber Category
  • 62.5 µm MM (OM1)
