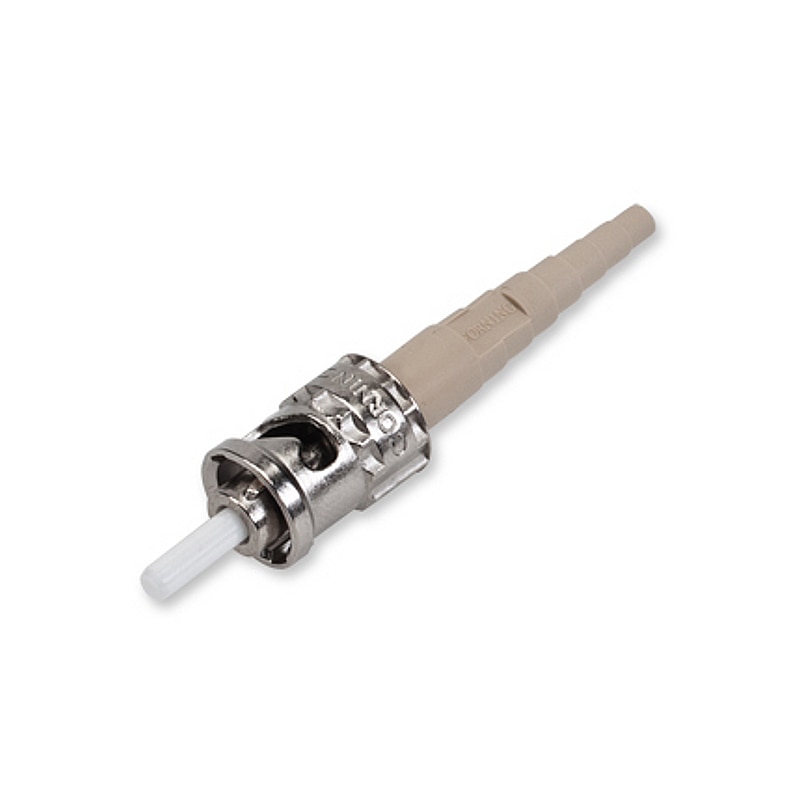

Corning Anaerobic Connector, ST® Compatible 62.5 µm multimode (OM1)

$10.20
Reference#: 69179
Item#: COR-95-101-52-SP



Description

Corning Cable Systems Anaerobic Cure Connectors offer
optical performance in a fast, easy field termination solution designed for fiber to the workstation applications for single -mode and multimode connections. This connector combines the quick cure convenience of anaerobic adhesive with the performance of epoxy and polish connectors. Ideal for enterprise networks and any installations requiring field installed connectors, the anaerobic cure
technology enables fiber optic networks to be installed cost effectively with minimal tools.Installation of the connector can be accomplished in minutes with the anaerobic adhesive two part epoxy process. The adhesive is first injected into the connector ferrule and then the fiber is dipped into the primer and inserted into the connector. Curing takes only one minute without the use of lamps or ovens. With the hand polish process, an average insertion loss of 0.2 dB is achieved.

Features

Quick-cure epoxy
  • No lamps or ovens needed
Minimal tools and no index-matching gel
  • Low installation cost
Hand polished for minimum insertion loss
  • Reliability and optical performance

Intermateability

  • Compliant with TIA/EIA

Specification

Technology

  • Field Polish (anaerobic)
Keyed
  •  No
Packaging
  •  Single Pack
Product Type
  •  Field-Installable Connectors
Corning Logo
  •  Yes
Fiber Category
  •  62.5 µm MM (OM1)
