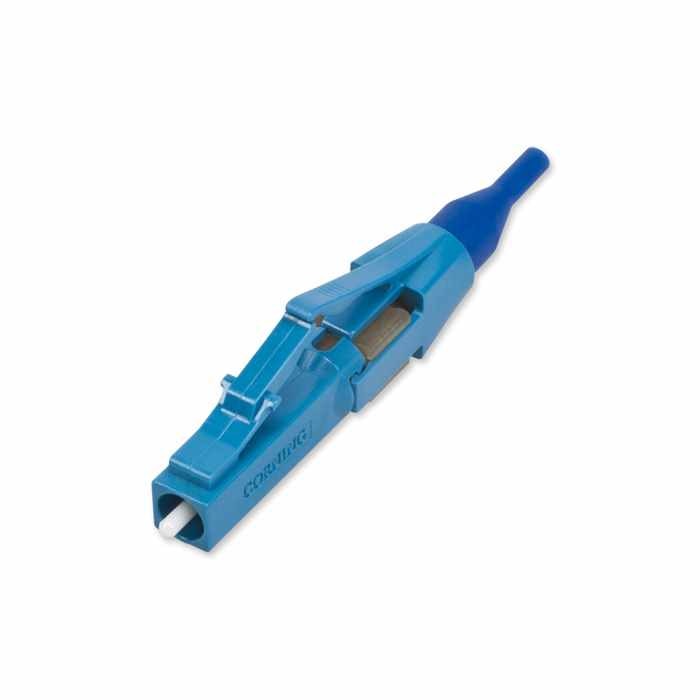

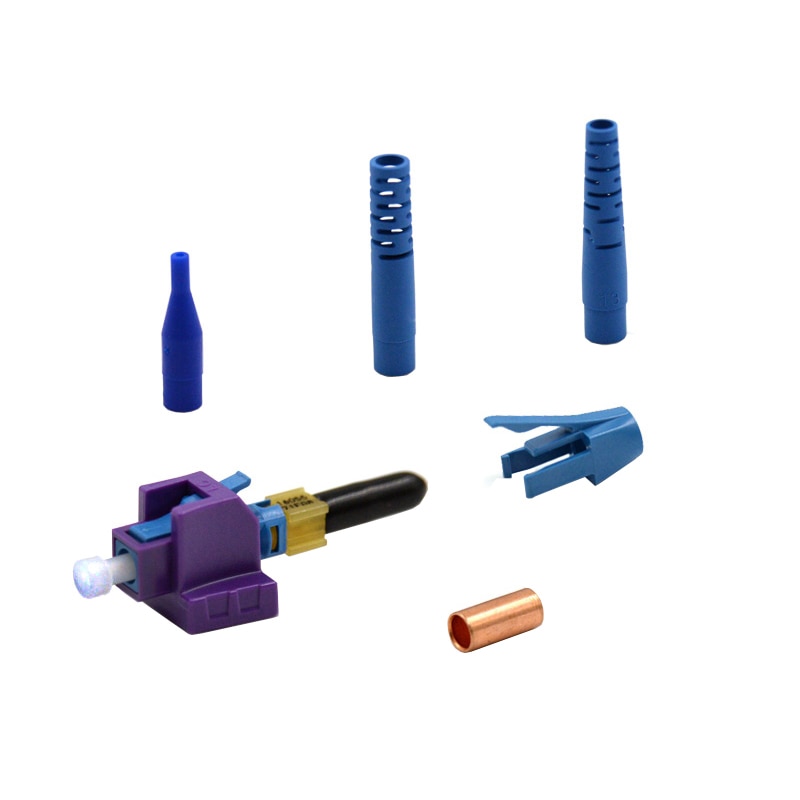

Corning Unicam High Performance LC Connector Singlemode

$19.50
Reference#: 69183
Item#: COR-95-200-99



Description

Corning Cable Systems UniCam High-Performance LC Connectors offer best-in-class optical performance in a fast, easy field-termination solution. These high-precision connectors guarantee exceptional insert loss – 0.1 dB typical/0.5 dB maximum per connector pair for multimode, 0.2 dB typical/0.5 dB maximum per connector pair for single-mode. Installation of an LC, SC, or ST Compatible Connector can be accomplished in about 45 seconds with the UniCam High-Performance Tool Kit. The lightweight, handheld installation tool and the high-performance cleaver virtually eliminate human variability from installation, ensuring terminations are right, the first time, every time. This kit was designed with consideration for the network installers, from the cleaver, with its integrated fiber scrap bin and dual-clamp precision hold, to the installation tool, with its immediate go/no-go feedback signal. Installation is as easy as strip, clean, cleave, cam and crimp, with exceptional optical performance guaranteed. Every UniCam Connector is guaranteed to meet the published specification at the time of installation or Corning Cable Systems will replace it.

Features

- Broad operating temperature (-40° to +75°C)
- Utility and flexibility
- Factory-polished end face
- Consistent optical performance
- Fast termination and no consumables
- Low installation cost
- Minimum insertion loss
- Optimum optical performance

Specification

Standards
Approval and Listings : Passed EIA/TIA 568-B.3
Intermateability : Connectors are FOCIS compliant with TIA/EIA 604-10A and IEC61754-20

General Specifications
Technology : No-Epoxy/No-Polish
Keyed : No
Product Type : Field-Installable Connectors
Corning Logo : Yes
Packaging : Single Pack
Fiber Category : Single-mode (OS2)

Temperature Range
Operation : -40 °C to 75 °C exceeding EIA/TIA 568-B.3 (-40 °F to 167 °F exceeding EIA/TIA 568-B.3)

Design - Connector A
Connector Type : LC
Ferrule : Ceramic
Housing Material : Composite
Housing Color : Blue
Boot Color : Blue

Mechanical Specifications - Connector A
Durability : ≤ 0.2 dB change by 500 rematings, FOTP-21
Tensile Strength Jacketed Cable : 44 N, change ≤ 0.2 dB, FOTP-6 (10 lb, change ≤ 0.2 dB, FOTP-6)
Tensile Strength 900µ Cable : 2.2 N, change ≤ 0.2 dB, FOTP-6 (0.5 lb, change ≤ 0.2 dB, FOTP-6)
Temperature Cycling : ≤ 0.3 dB IL, -40° to +75°C, 21 cycles
Nominal Fiber Outer Diameter : 125 µm

Optical Specifications - Connector A
Insertion Loss, Typical : 0.2 dB
Insertion Loss, Max. : 0.5 dB
Reflectance : -55 dB
Polish : UPC

Chemical Characteristics
RoHS : Free of hazardous substances according to RoHS 2002/95/EG
