Corning 6 Strand Singlemode Indoor Armored Plenum Fiber Optic Cable - Yellow (Per Foot)

Reference#: 73228
Item#: COR-006E88-33131-D3

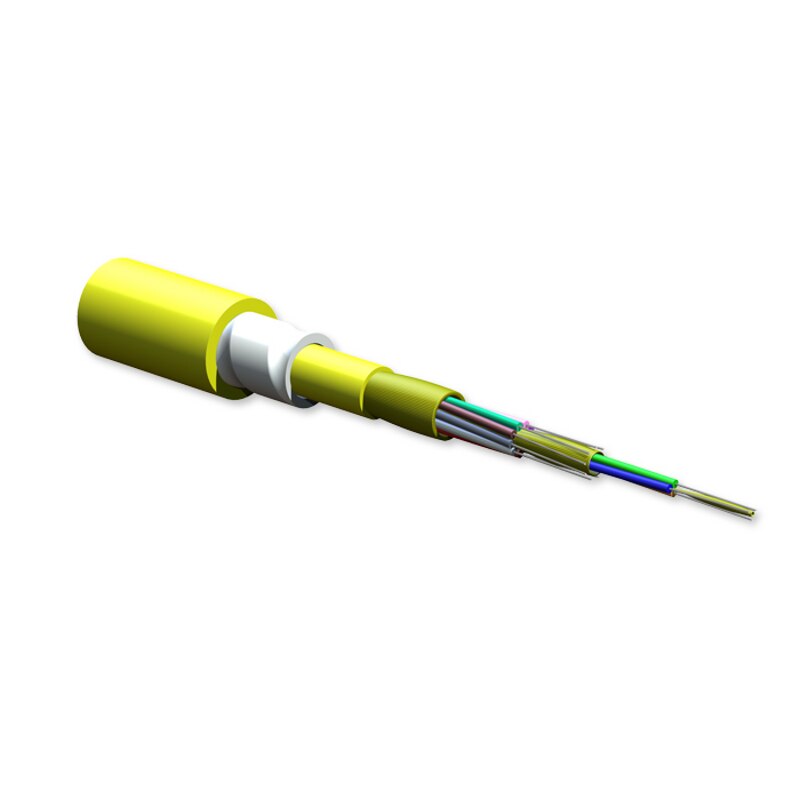

Corning Cable Systems MIC® DX Armored Plenum Cables are standard MIC subunits placed inside a dielec-tric armor for ruggedness and superior crush resistance without the conductive properties of traditional armor. These cables are designed for use in intrabuilding back-bone and horizontal installations. Individually jacketed TBII® Buffered Fibers enable easy, consistent stripping and facilitate termination.
The fibers are stranded around a dielectric central mem-ber that is protected by a flexible, all -dielectric armor offering easy, one -step installation and over four times the crush protection of unarmored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical expo-sure conditions and applications requiring extra rugged cables.


Dielectric armor
  • Four times crush protection compared to unarmored
TBII® Buffered Fibers
  • Easy, consistent stripping
Flame-retardant jacket
  • Rugged and durable
Easy armor removal
  • Increased safety and speed at installation
Approval and Listings
  • National Electrical Code®(NEC®) OFNP, CSA FT-6, ICEA S-83-596
Flame Resistance
  • NFPA 262 (for plenum, riser and general building applications)



  • Indoor


  • General Purpose Horizontal, Plenum

Cable Type

  • Tight-Buffered

Product Type

  • Dielectric armor

Flame Rating

  • Plenum (OFNP)

Fiber Category

  • Single-mode (OS2)
  • -40 °C to 70 °C (-40 °F to 158 °F)


  • 0 °C to 60 °C (32 °F to 140 °F)


  • 0 °C to 70 °C (32 °F to 158 °F)
