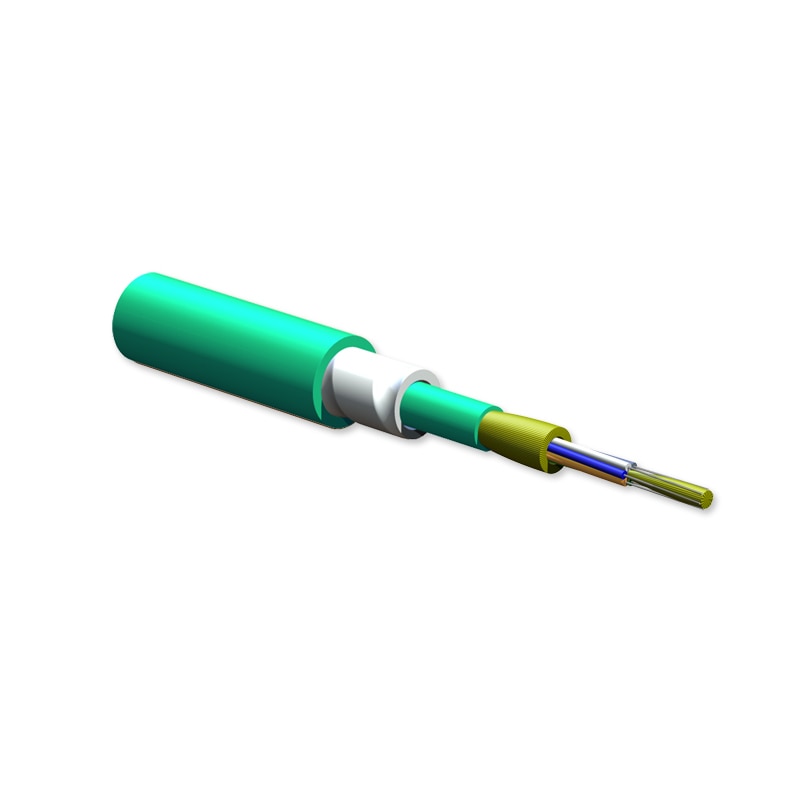

Corning 6 Strand 50/125 Multimode OM3 Indoor Armored Plenum Fiber Optic Cable - Aqua (Per Foot)
$3.15
Reference#: 69063
Item#: COR-006T88-31180-D3
Item#: COR-006T88-31180-D3
Description
Corning Cable Systems MIC®
DX Armored Plenum
Cables are standard MIC subunits placed inside a dielec-tric armor for ruggedness and superior crush resistance
without the conductive properties of traditional armor.
These cables are designed for use in intrabuilding back-bone and horizontal installations. Individually jacketed
TBII
®
Buffered Fibers enable easy, consistent stripping
and facilitate termination.
The fibers are stranded around a dielectric central mem-ber that is protected by a flexible, all -dielectric armor
offering easy, one -step installation and over four times
the crush protection of unarmored cables. With a flame
-retardant outer jacket, this cable is particularly useful
for heavy traffic or more challenging mechanical expo-sure conditions and applications requiring extra rugged
cables.
This cable is available in 12 different jacket colors - blue,
orange, green, brown, slate, white, red, black, yellow,
purple, rose and aqua. The colored jacket allows for easy
visual identification of the cables. The standard jacket
color will be determined by the dominant fiber type in
the cable and will use the standard part numbers shown
here.
DX Armored Plenum
Cables are standard MIC subunits placed inside a dielec-tric armor for ruggedness and superior crush resistance
without the conductive properties of traditional armor.
These cables are designed for use in intrabuilding back-bone and horizontal installations. Individually jacketed
TBII
®
Buffered Fibers enable easy, consistent stripping
and facilitate termination.
The fibers are stranded around a dielectric central mem-ber that is protected by a flexible, all -dielectric armor
offering easy, one -step installation and over four times
the crush protection of unarmored cables. With a flame
-retardant outer jacket, this cable is particularly useful
for heavy traffic or more challenging mechanical expo-sure conditions and applications requiring extra rugged
cables.
This cable is available in 12 different jacket colors - blue,
orange, green, brown, slate, white, red, black, yellow,
purple, rose and aqua. The colored jacket allows for easy
visual identification of the cables. The standard jacket
color will be determined by the dominant fiber type in
the cable and will use the standard part numbers shown
here.
Features
Dielectric armor
- Four times crush protection compared to unarmored
- Easy, consistent stripping
- Rugged and durable
- Increased safety and speed at installation
Approval and Listings
- National Electrical Code® (NEC®) OFNP, CSA FT-6,ICEA S-83-596
Flame Resistance
- NFPA 262 (for plenum, riser and general building appli-cations)
Specification
Environment
- Indoor
Application
- General Purpose Horizontal, Plenum
Cable Type
- Tight-Buffered
Product Type
- Dielectric armor
Flame Rating
- Plenum (OFNP)
Fiber Category
- 50 µm MM (OM3)
