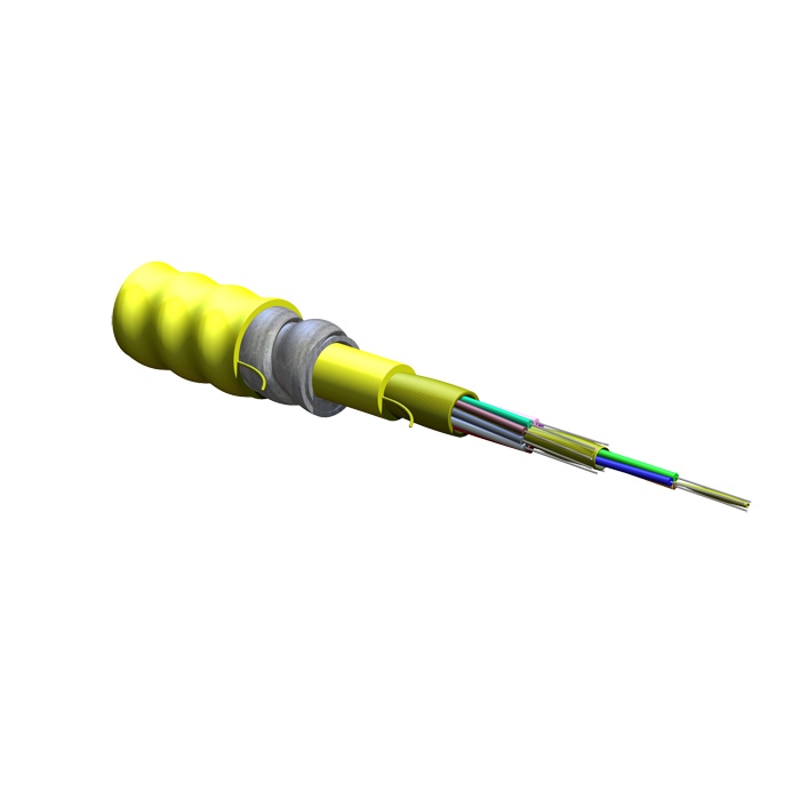

Corning 12 Strand Singlemode Indoor Armored Riser Fiber Optic Cable - Yellow (Per Foot)

$1.96
Reference#: 69075
Item#: COR-012E81-33131-A1



Description

Corning Cable Systems MIC® Interlocking Armored Riser Cables are designed for use in intrabuilding backbone and horizontal installations. They use individually jack-eted TBII® Buffered Fibers enabling easy, consistent stripping and facilitating termination. The fibers are grouped into jacketed subunits and surrounded by a dielectric central member. The core is protected by a flexible, spirally wrapped, aluminum interlocking armor that offers easy, one -step installation and over seven times the crush protection of unarmored cables. With a flame -retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rug-ged cables.

Features

Flexible, interlocking armor design
  • Seven times crush protection compared to unarmored cables
TBII® Buffered Fibers
  • Easy, consistent stripping
Flame-retardant jacket
  • Rugged and durable
Approval and Listings
  • National Electrical Code® (NEC®) OFCR, CSA FT-4, ICEA S-83-596
Flame Resistance
  • UL-1666 (for riser and gen-eral building applications)

Specification

Environment

  • Indoor

Application

  • General Purpose Horizontal, Vertical Riser

Cable Type

  • Tight-Buffered

Product Type

  • Interlocking armor

Flame Rating

  • Riser (OFCR)

Fiber Category

  • Single-mode (OS2)
Storage
  •  -40 °C to 70 °C (-40 °F to 158 °F)
Installation
  •  -10 °C to 60 °C (14 °F to 140 °F)
Operation
  •  -20 °C to 70 °C (-4 °F to 158 °F)
