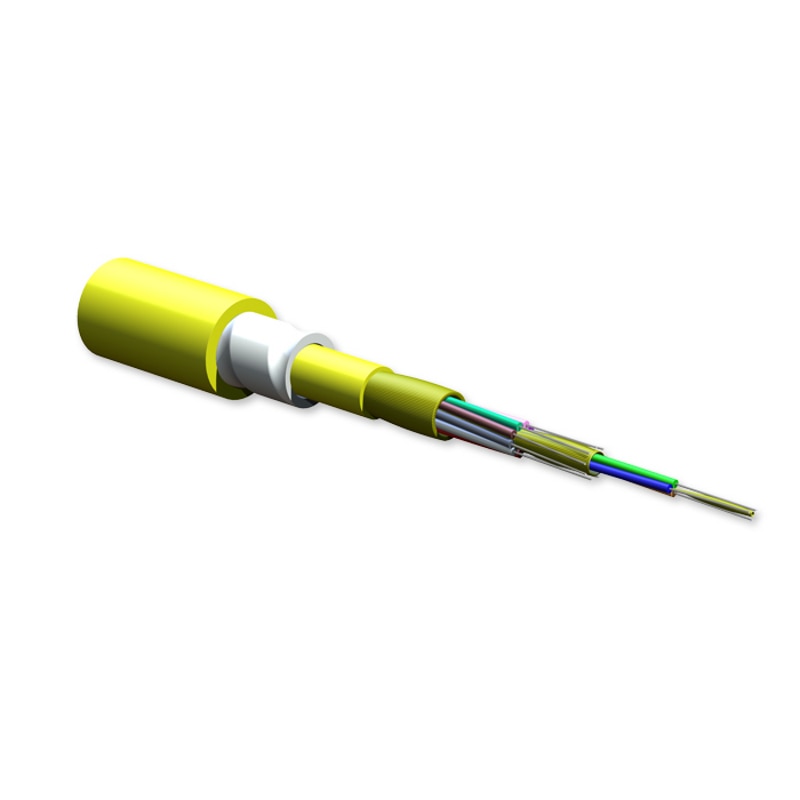

Corning 12 Strand Singlemode Indoor Armored Riser Fiber Optic Cable - Yellow (Per Foot)

$2.93
Reference#: 69076
Item#: COR-012E81-33131-D3



Description

Corning Cable Systems MIC® DX Armored Riser Cables are standard MIC subunits placed inside a dielectric armor for ruggedness and superior crush resistance with-out the conductive properties of traditional armor. These cables are designed for use in intrabuilding backbone and horizontal installations. Individually jacketed TBII® Buffered Fibers enable easy, consistent stripping and fa-cilitate termination.  The fibers are stranded around a dielectric central mem-ber that is protected by a flexible, all -dielectric armor offering easy, one -step installation and over four times the crush protection of unarmored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical expo-sure conditions and applications requiring extra rugged cables.

Features

Dielectric armor
  • Four times crush protection compared to unarmored
TBII® Buffered Fibers
  • Easy, consistent stripping
Flame-retardant jacket
  • Rugged and durable
Easy armor removal
  • Increased safety and speed at installation

Approval and Listings

  • National Electrical Code® (NEC®) OFNR, CSA FT-4,ICEA S-83-596

Flame Resistance

  • UL-1666 (for riser and general building applications)

Specification

Environment

  • Indoor

Application

  • General Purpose Horizontal, Vertical Riser

Cable Type

  • Tight-Buffered

Product Type

  • Dielectric armor

Flame Rating

  • Riser (OFNR)

Fiber Category

  • Single-mode (OS2)
