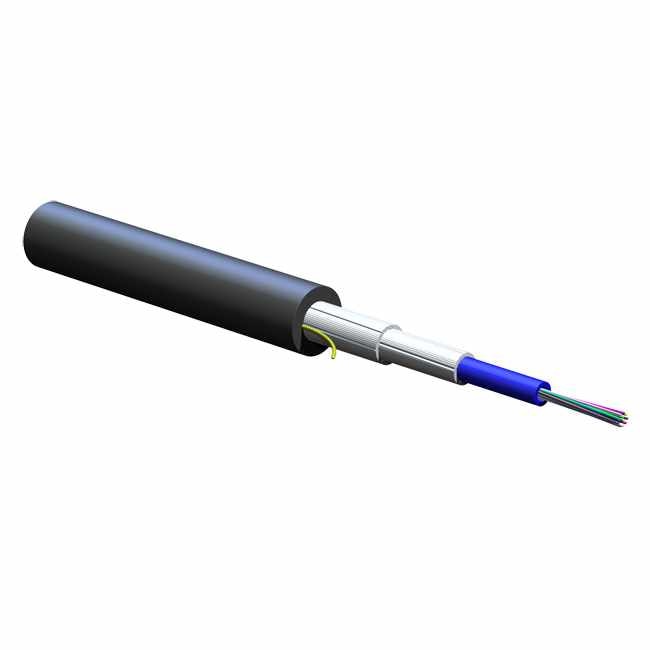

Corning 12 Strand Singlemode Indoor/Outdoor Riser, Loose Tube Fiber Optic Cable - Black (Per Foot)

$0.81
Reference#: 69083
Item#: COR-012ESF-T4101D20



Description

Corning Cable Systems FREEDM® LST™ Gel -Free Cables are flame -retardant, indoor/outdoor, riser -rated cables designed for interbuilding and intrabuilding back-bones in aerial, duct and riser applications. With a riser rating, there is no need for a transition splice when enter-ing the building. Available in a compact design, these cables are protected against water penetration by inno-vative waterblocking tapes and yarns that swell to absorb water. Waterblocking without the use of messy gels pro-vides more efficient and craft -friendly cable preparation, allows easier cable access and simplifies the use of buf-fer tube fan -out kits. The buffer tubes and fibers in each tube are color -coded for quick, easy identification.

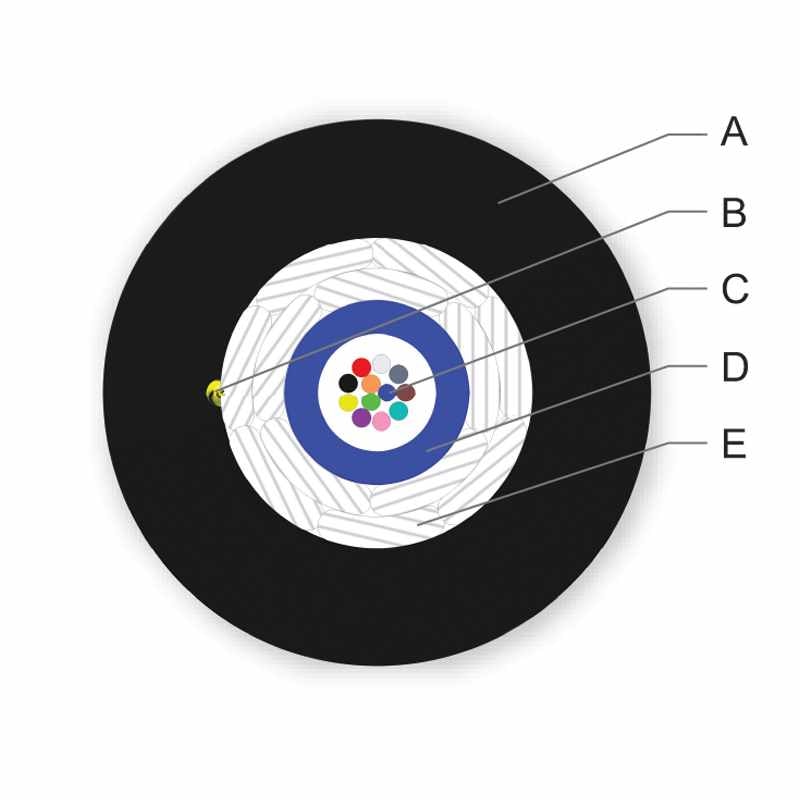

The SZ -stranded, loose tube design isolates fibers from installation and environmental rigors and allows for easy midspan access. The cable design is also National Electrical Code®(NEC ®) listed (OFNR and FT -4). The all -dielectric cable construction requires no grounding or bonding and the UV -resistant, flame -retardant jacket is rugged, durable and easy to strip.

Features

Riser rating
  • No transition splices when entering buildings
Gel-free waterblocking technology
  • Craft-friendly cable preparation
Color-coded fibers
  • Quick and easy identification
All-dielectric construction
  • Requires no grounding or bonding
UV-resistant, flame-retardant jacket
  • Rugged, durable and easy to strip
Approval and Listings
  •  National Electrical Code®(NEC®) OFNR, CSA OFN FT-4
Common Installations
  • Outdoor lashed aerial and duct; indoor vertical riser and general purpose hori-zontal according to National Electrical Code® (NEC) Article 770
Design and Test Criteria
  • ANSI/ICEA S-104-696

Specification

Environment

  • Indoor/Outdoor Cables
Application
  • Aerial, Direct Buried, Duct, General Purpose Horizontal, (Vertical Riser)

Cable Type

  • Loose Tube

Product Type

  • Dielectric

Flame Rating

  • Riser (OFNR)

Fiber Category

  • Single-mode (OS2)
