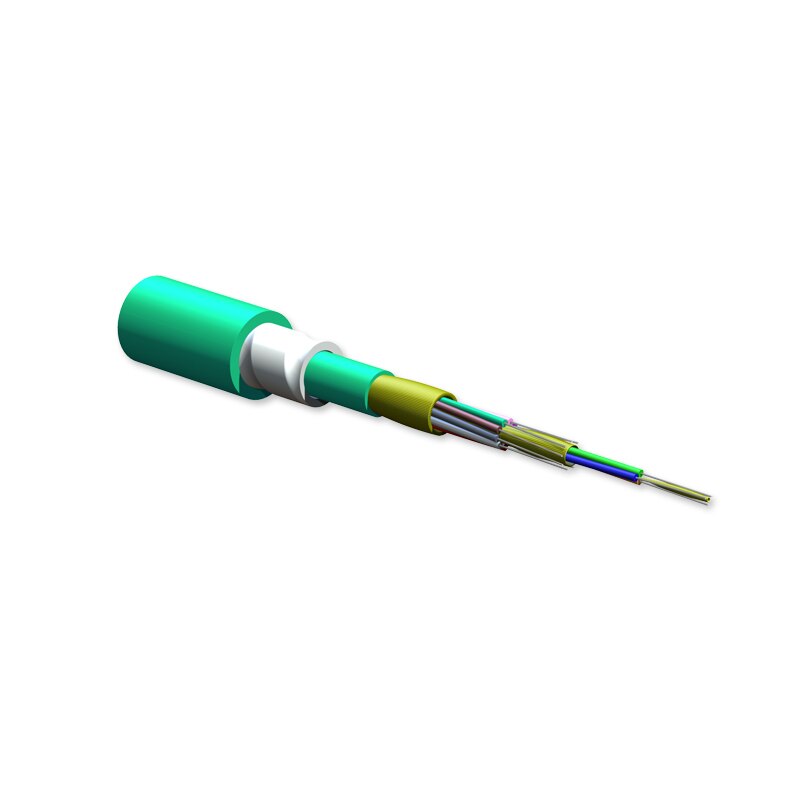

Corning 12 Strand 50/125 Multimode OM3 Indoor DX Armored Riser Fiber Optic Cable - Aqua (Per Foot)
$3.69
Reference#: 69103
Item#: COR-012T81-33180-D1
Item#: COR-012T81-33180-D1
Description
Corning Cable Systems MIC®
DX Armored Riser Cables
are standard MIC subunits placed inside a dielectric
armor for ruggedness and superior crush resistance with-out the conductive properties of traditional armor. These
cables are designed for use in intrabuilding backbone
and horizontal installations. Individually jacketed TBII
®
Buffered Fibers enable easy, consistent stripping and fa-cilitate termination.
The fibers are stranded around a dielectric central mem-ber that is protected by a flexible, all -dielectric armor
offering easy, one -step installation and over four times
the crush protection of unarmored cables. With a flame
-retardant outer jacket, this cable is particularly useful
for heavy traffic or more challenging mechanical expo-sure conditions and applications requiring extra rugged
cables.
This cable is available in 12 different jacket colors - blue,
orange, green, brown, slate, white, red, black, yellow,
purple, rose and aqua. The colored jacket allows for easy
visual identification of the cables. The standard jacket
color will be determined by the dominant fiber type in
the cable and will use the standard part numbers shown
here.
DX Armored Riser Cables
are standard MIC subunits placed inside a dielectric
armor for ruggedness and superior crush resistance with-out the conductive properties of traditional armor. These
cables are designed for use in intrabuilding backbone
and horizontal installations. Individually jacketed TBII
®
Buffered Fibers enable easy, consistent stripping and fa-cilitate termination.
The fibers are stranded around a dielectric central mem-ber that is protected by a flexible, all -dielectric armor
offering easy, one -step installation and over four times
the crush protection of unarmored cables. With a flame
-retardant outer jacket, this cable is particularly useful
for heavy traffic or more challenging mechanical expo-sure conditions and applications requiring extra rugged
cables.
This cable is available in 12 different jacket colors - blue,
orange, green, brown, slate, white, red, black, yellow,
purple, rose and aqua. The colored jacket allows for easy
visual identification of the cables. The standard jacket
color will be determined by the dominant fiber type in
the cable and will use the standard part numbers shown
here.
Features
Dielectric armor
- Four times crush protection compared to unarmored
- Easy, consistent stripping
- Rugged and durable
- Increased safety and speed at installation
Approval and Listings
- National Electrical Code® (NEC®) OFNR, CSA FT-4, ICEA S-83-596
Flame Resistance
- UL-1666 (for riser and gen-eral building applications)
Specification
Environment
- Indoor
Application
- General Purpose Horizontal, Vertical Riser
Cable Type
- Tight-Buffered
Product Type
- Dielectric armor
Flame Rating
- Riser (OFNR)
Fiber Category
- 50 µm MM (OM3)
Storage
- -40 °C to 70 °C (-40 °F to 158 °F)
Installation
- -10 °C to 60 °C (14 °F to 140 °F)
Operation
- -20 °C to 70 °C (-4 °F to 158 °F)
