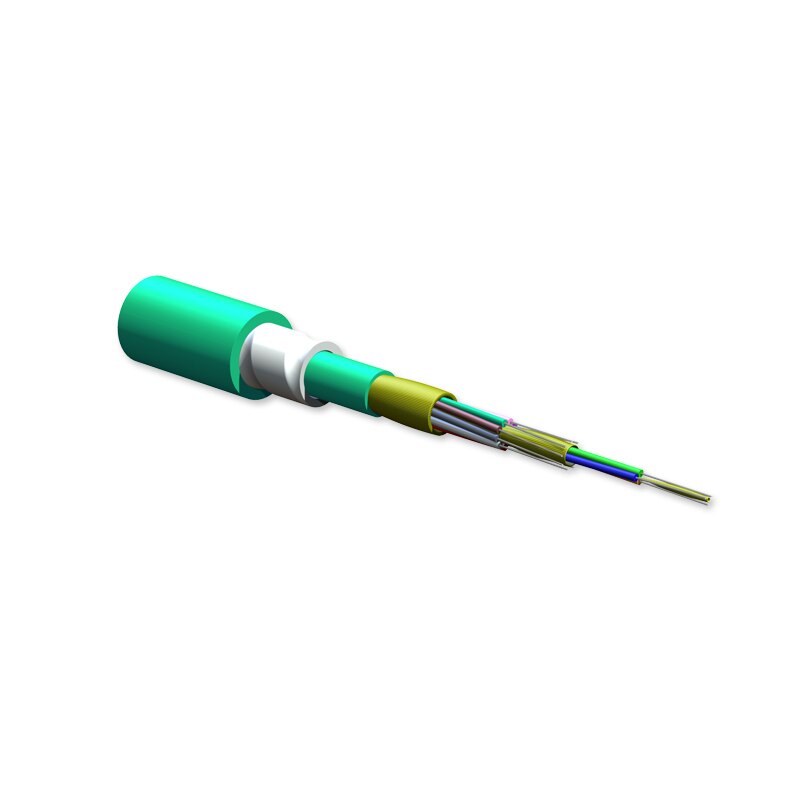

Corning 12 Strand 50/125 Multimode OM3 Indoor DX Armored Plenum Fiber Optic Cable - Aqua (Per Foot)
$4.18
Reference#: 69107
Item#: COR-012T88-33180-D3
Item#: COR-012T88-33180-D3
Description
Corning Cable Systems MIC®
DX Armored Plenum
Cables are standard MIC subunits placed inside a dielec-tric armor for ruggedness and superior crush resistance
without the conductive properties of traditional armor.
These cables are designed for use in intrabuilding back-bone and horizontal installations. Individually jacketed
TBII
®
Buffered Fibers enable easy, consistent stripping
and facilitate termination.
The fibers are stranded around a dielectric central mem-ber that is protected by a flexible, all -dielectric armor
offering easy, one -step installation and over four times
the crush protection of unarmored cables. With a flame
-retardant outer jacket, this cable is particularly useful
for heavy traffic or more challenging mechanical expo-sure conditions and applications requiring extra rugged
cables.
This cable is available in 12 different jacket colors - blue,
orange, green, brown, slate, white, red, black, yellow,
purple, rose and aqua. The colored jacket allows for easy
visual identification of the cables.
DX Armored Plenum
Cables are standard MIC subunits placed inside a dielec-tric armor for ruggedness and superior crush resistance
without the conductive properties of traditional armor.
These cables are designed for use in intrabuilding back-bone and horizontal installations. Individually jacketed
TBII
®
Buffered Fibers enable easy, consistent stripping
and facilitate termination.
The fibers are stranded around a dielectric central mem-ber that is protected by a flexible, all -dielectric armor
offering easy, one -step installation and over four times
the crush protection of unarmored cables. With a flame
-retardant outer jacket, this cable is particularly useful
for heavy traffic or more challenging mechanical expo-sure conditions and applications requiring extra rugged
cables.
This cable is available in 12 different jacket colors - blue,
orange, green, brown, slate, white, red, black, yellow,
purple, rose and aqua. The colored jacket allows for easy
visual identification of the cables.
Features
Dielectric armor
- Four times crush protection compared to unarmored
- Easy, consistent stripping
- Rugged and durable
- Increased safety and speed at installation
- National Electrical Code® (NEC®) OFNP, CSA FT-6, ICEA S-83-596
- NFPA 262 (for plenum, riser and general building applications)
Specification
Environment
- Indoor
Application
- General Purpose Horizontal, Plenum
Cable Type
- Tight-Buffered
Product Type
- Dielectric armor
Flame Rating
- Plenum (OFNP)
Fiber Category
- 50 µm MM (OM3)
