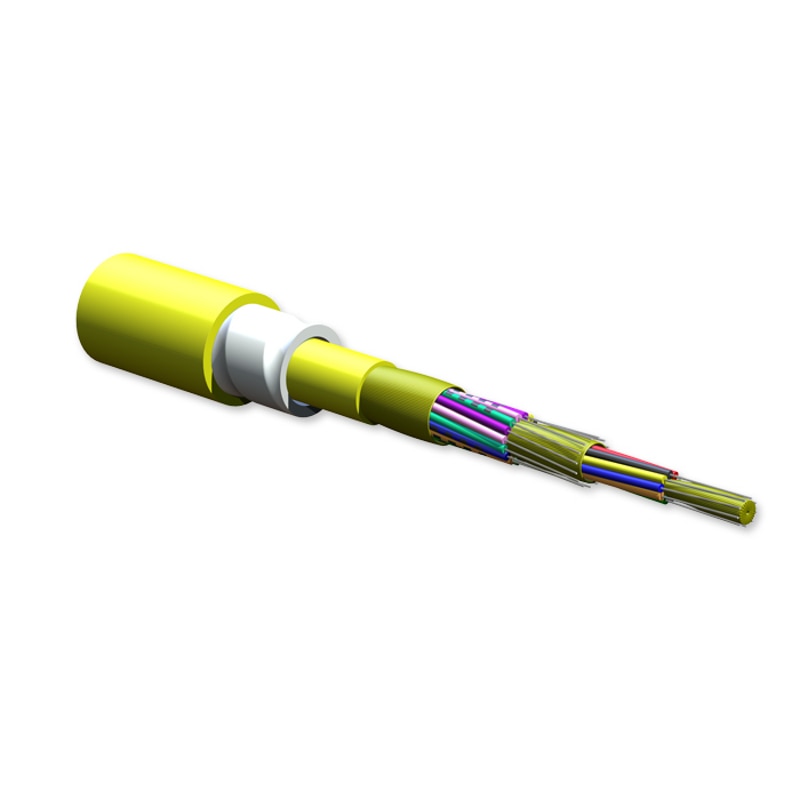

Corning 24 Strand Singlemode Indoor DX Armored Riser Fiber Optic Cable - Yellow (Per Foot)
$3.45
Reference#: 69117
Item#: COR-024E81-33131-D1
Item#: COR-024E81-33131-D1
Description
Corning Cable Systems MIC® DX Armored Riser Cables are standard MIC subunits placed inside a dielectric armor for ruggedness and superior crush resistance with-out the conductive properties of traditional armor. These cables are designed for use in intrabuilding backbone and horizontal installations. Individually jacketed TBII® Buffered Fibers enable easy, consistent stripping and fa-cilitate termination.
The fibers are stranded around a dielectric central mem-ber that is protected by a flexible, all -dielectric armor offering easy, one -step installation and over four times the crush protection of unarmored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical expo-sure conditions and applications requiring extra rugged cables.
The fibers are stranded around a dielectric central mem-ber that is protected by a flexible, all -dielectric armor offering easy, one -step installation and over four times the crush protection of unarmored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical expo-sure conditions and applications requiring extra rugged cables.
Features
Dielectric armor
- Four times crush protection compared to unarmored
- Easy, consistent stripping
- Rugged and durable
- Increased safety and speed at installation
- National Electrical Code®(NEC®) OFNR, CSA FT-4, ICEA S-83-596
- UL-1666 (for riser and gen-eral building applications)
Specification
Environment
- Indoor
Application
- General Purpose Horizontal, Vertical Riser
- Tight-Buffered
- Dielectric armor
- Riser (OFNR)
- Single-mode (OS2)
Storage
- -40 °C to 70 °C (-40 °F to 158 °F)
Installation
- -10 °C to 60 °C (14 °F to 140 °F)
Operation
- -20 °C to 70 °C (-4 °F to 158 °F)
