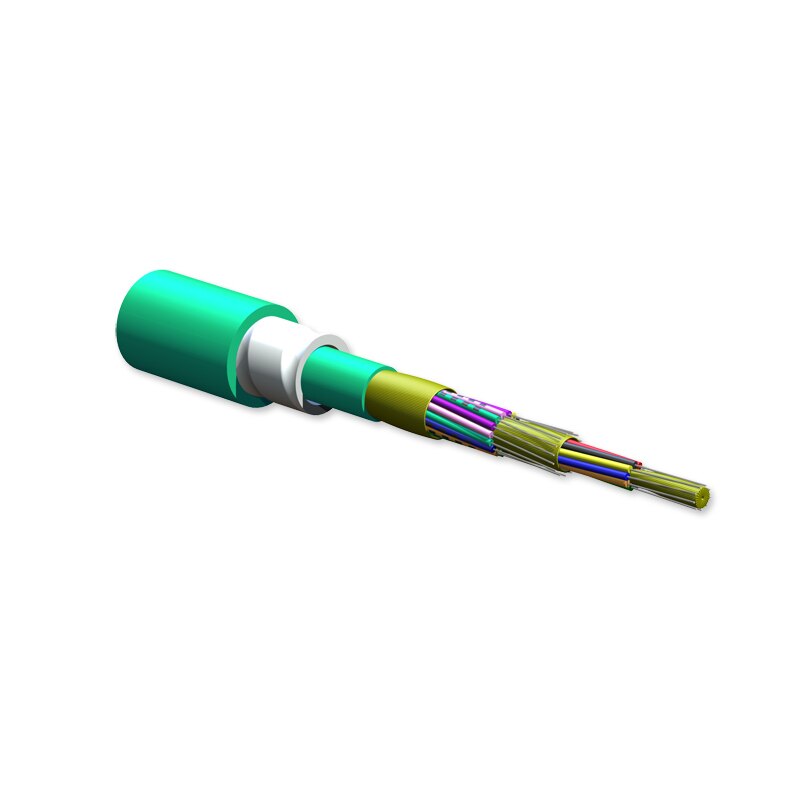

Corning 24 Strand 50/125 Multimode OM3 Indoor DX Armored Plenum Fiber Optic Cable - Aqua (Per Foot)

$7.05
Reference#: 69145
Item#: COR-024T88-33180-D3



Description

Corning Cable Systems MIC®DX Armored Plenum Cables are standard MIC subunits placed inside a dielectric armor for ruggedness and superior crush resistance without the conductive properties of traditional armor. These cables are designed for use in intrabuilding back-bone and horizontal installations. Individually jacketed TBII Buffered Fibers enable easy, consistent stripping and facilitate termination. The fibers are stranded around a dielectric central member that is protected by a flexible, all -dielectric armor offering easy, one step installation and over four times the crush protection of unarmored cables. With a flame retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables.

Features

Dielectric armor
  • Four times crush protection compared to unarmored
TBII® Buffered Fibers
  • Easy, consistent stripping
Flame-retardant jacket
  • Rugged and durable
Easy armor removal
  • Increased safety and speed at installation

Approval and Listings

  • National Electrical Code®(NEC®) OFNP, CSA FT-6,ICEA S-83-596

Flame Resistance

  • NFPA 262 (for plenum, riserand general building applications)

Specification

Environment

  • Indoor

Application

  • General Purpose Horizontal, Plenum

Cable Type

  • Tight-Buffered
Product Type
  • Dielectric armor
Flame Rating
  • Plenum (OFNP)
Fiber Category
  • 50 µm MM (OM3)
