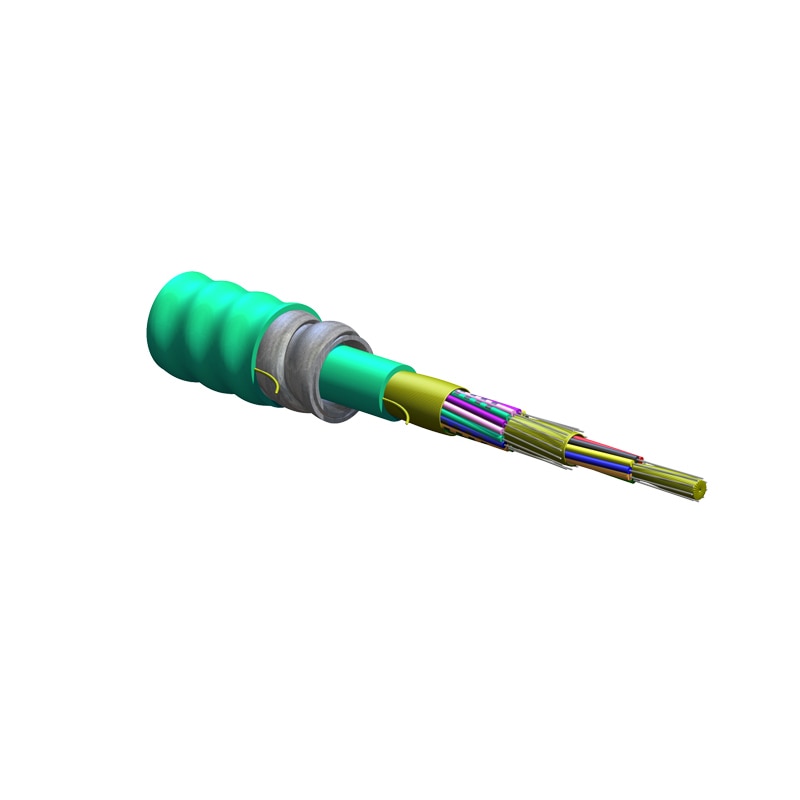

Corning 24 Strand 50/125 Multimode OM4 Indoor Armored Plenum Fiber Optic Cable - Aqua (Per Foot)
$6.57
Reference#: 69144
Item#: COR-024T88-33190-A3
Item#: COR-024T88-33190-A3
Description
Corning Cable Systems MIC® Interlocking Armored Plenum Cables are designed for use in plenum, riser and general purpose environments for intrabuilding backbone and horizontal installations.
These multifiber cables use individually jacketed TBII Buffered Fibers enabling easy, consistent stripping and facilitating termination. The fibers are grouped into jacketed subunits and surrounded by a dielectric central member. The core is protected by a flexible, spirally wrapped, aluminum interlocking armor that offers easy, one step installation and over seven times the crush protection of unarmored cables.
With a flame -retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables.
These multifiber cables use individually jacketed TBII Buffered Fibers enabling easy, consistent stripping and facilitating termination. The fibers are grouped into jacketed subunits and surrounded by a dielectric central member. The core is protected by a flexible, spirally wrapped, aluminum interlocking armor that offers easy, one step installation and over seven times the crush protection of unarmored cables.
With a flame -retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables.
Features
Flexible, interlocking armor design
- Seven times crush protection compared to unarmoredcables
- Easy, consistent stripping
- Rugged and durable
Approval and Listings
- National Electrical Code® (NEC®) OFCP, CSA FT-6, ICEA S-83-596
Flame Resistance
- NFPA 262 (for plenum, riser and general building applications)
Specification
Environment
- Indoor
Application
- General Purpose Horizontal, Vertical Riser, Plenum
Cable Type
- Tight-Buffered
Product Type
- Interlocking armor
Flame Rating
- Plenum (OFCP)
Fiber Category
- 50 µm MM (OM3)
