Corning Industrial Connector Housings (ICH) <br>Holds 6 CCH connector panels, black

Reference#: 69238
Item#: COR-ICH-06P

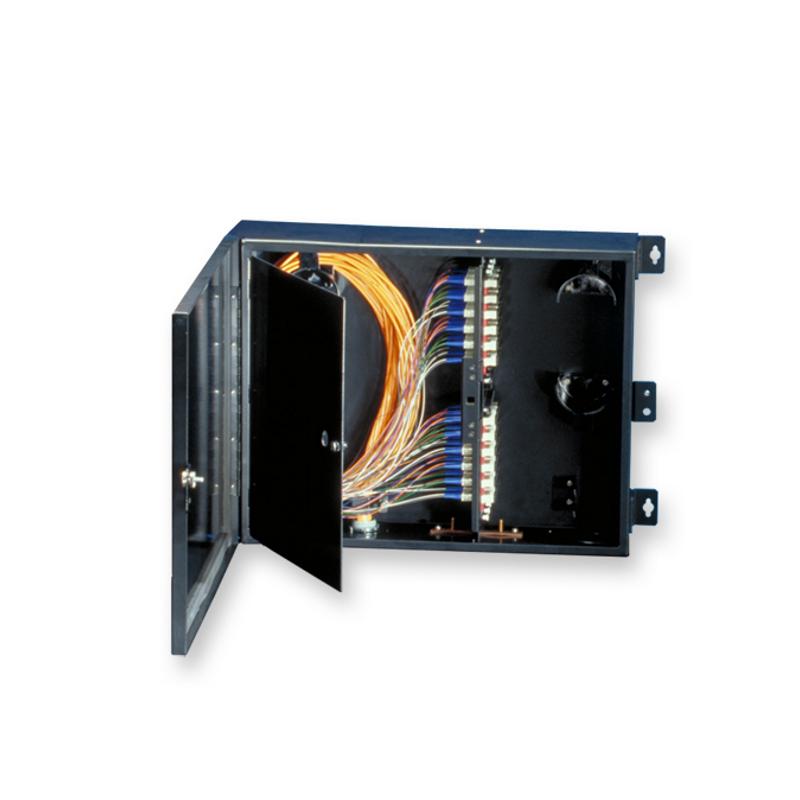

Corning Cable Systems Industrial Connector Housing
(ICH) family is ideal for manufacturing and industrial
applications. The standard -grade ICH is finished with a
baked -on black powder -coat finish, while the upgraded
housings (part numbers ending in  -IND) are finished in
silver -gray.
The housings are designed to accommodate conduit with
either concentric knockouts (standard version) or rubber
grommets (upgraded version), and both options accept
standard CCH connector panels and connector modules.
Splicing is accomplished with the splice tray holding
kit that may be ordered separately. The units have a
padlockable outer door and a separate inner door that
protects the provider side of the unit from unauthorized
access. The inner door may also be locked by using an
optional key lock.
The standard ICH (ICH -02P, ICH -06P and ICH -12P) is
IEC IP64 and NEMA 3S tested with a tough, baked -on,
smooth black powder -coat finish. The upgraded ICH
(ICH -02P -IND, ICH -06P -IND and ICH -12P -IND) is IEC
IP66, IP67, IP69K tested with a tough, baked -on, smooth
silver -gray powder -coat finish and a reduction washer kit


IP tested
  • Reliability in harsh environments
Routing guides, cable strain-relief provisions included
  • Easy, out-of-the-box installation
Keyhole mounting holes
  • Fast installation



  • Enterprise Networks

Mounting Type

  • Wall-Mountable

Product Type

  • Wall-Mountable Hardware


  • Ratings IEC IP64 and NEMA 3s


  • (HxWxD) 40.1 cm x 50.8 cm x 15.2 cm (16 in x 20 in x 6 in)
