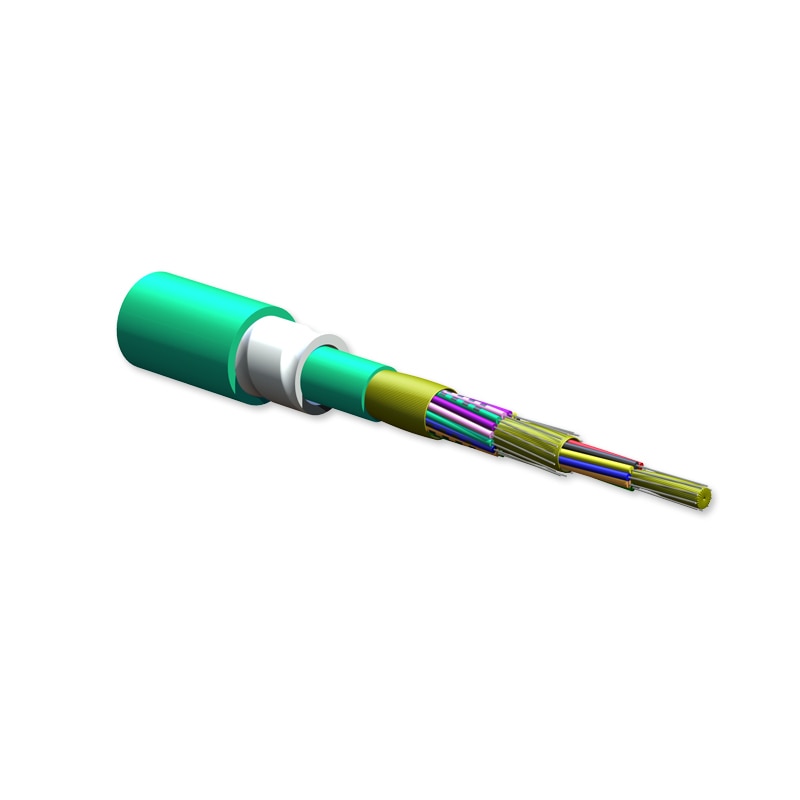

Corning 24 Strand 50/125 Multimode OM3 Indoor DX Armored Riser Fiber Optic Cable (1,640ft minimum)

Note: Minimum Order Quantity - 1,640ft
To order, add ANY length above 1,640ft in "Add to Cart" box.

Corning Cable Systems MIC® DX Armored Riser Cables are standard MIC subunits placed inside a dielectric armor for ruggedness and superior crush resistance with-out the conductive properties of traditional armor. These cables are designed for use in intrabuilding backbone and horizontal installations. Individually jacketed TBII® Buffered Fibers enable easy, consistent stripping and facilitate termination. The fibers are stranded around a dielectric central member that is protected by a flexible, all -dielectric armor offering easy, one -step installation and over four times the crush protection of unarmored cables. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical expo-sure conditions and applications requiring extra rugged cables.

This cable is available in 12 different jacket colors (all special order); blue, orange, green, brown, slate, white, red, black, yellow, purple, rose and aqua. The colored jacket allows for easy visual identification of the cables. The standard jacket color will be determined by the dominant fiber type in the cable and will use the standard part numbers shown here.

• Four times crush protection compared to unarmored

• Easy, consistent stripping

• Rugged and durable

• Increased safety and speed at installation

Approval and Listings

• National Electrical Code® (NEC®) OFNR, CSA FT-4,ICEA S-83-596


Flame Resistance

• UL-1666 (for riser and gen-eral building applications)

Environment

• Indoor

Application

• General Purpose Horizontal, Vertical Riser

Cable Type

• Tight-Buffered

Product Type

• Dielectric armor

Flame Rating

• Riser (OFNR)

Fiber Category

• 50 µm MM (OM3)

• -40 °C to 70 °C (-40 °F to 158 °F)

• -10 °C to 60 °C (14 °F to 140 °F)

• -20 °C to 70 °C (-4 °F to 158 °F)

Note: Minimum Order Quantity - 1,640ft
To order, add ANY length above 1,640ft in "Add to Cart" box.
